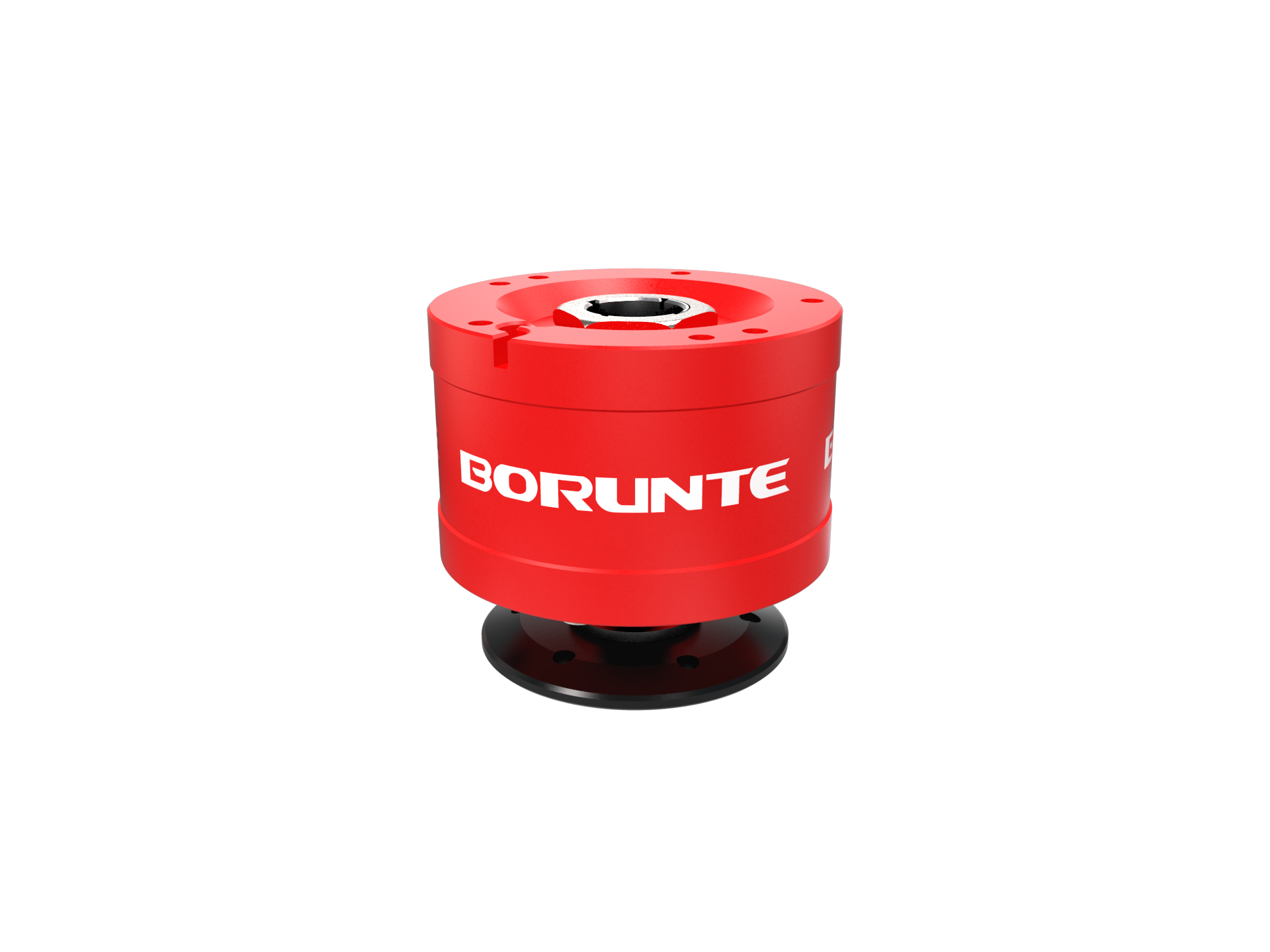

Borunte BRTFP0106010 Robotic Anti-Collision Flange

The BRTFP0106010 is a high-sensitivity robotic anti-collision flange protecting end-of-arm tooling and robot joints from impact damage. Featuring rapid detection, mechanical buffering, and automatic reset, it ensures production resumes instantly after a collision event.

The Borunte BRTFP0106010 Anti-Collision Flange is the primary mechanical defense system for industrial robots working in dense or unpredictable environments. Installed between the robot's wrist and the end-effector, this device provides a 360-degree detection zone for unexpected impacts. Should the fixture encounter an obstacle, the BRTFP0106010 senses the force immediately and triggers an emergency stop signal to the robot controller, halting motion within milliseconds. Beyond simple detection, the flange incorporates a mechanical buffering zone that absorbs the residual kinetic energy of the impact, preventing stress from being transferred to the robot's gear reducers or delicate tooling. A key mechanical highlight is its automatic reset capability: once the obstruction is removed, the flange returns to its initial center position with high repeatability. This eliminates the need for technicians to manually recalibrate the robot after a minor collision, significantly reducing downtime. LVH Systems sources the BRTFP0106010 for customers building machine tending and assembly cells where interference risks are high. Available for sourcing through LVH Systems global procurement network.
