Borunte BRTFZ1030010 Mechanical Non-Magnetic Sheet Splitter
Pneumatic mechanical splitter for non-magnetic sheet materials preventing double-sheet feeding in automated stamping.

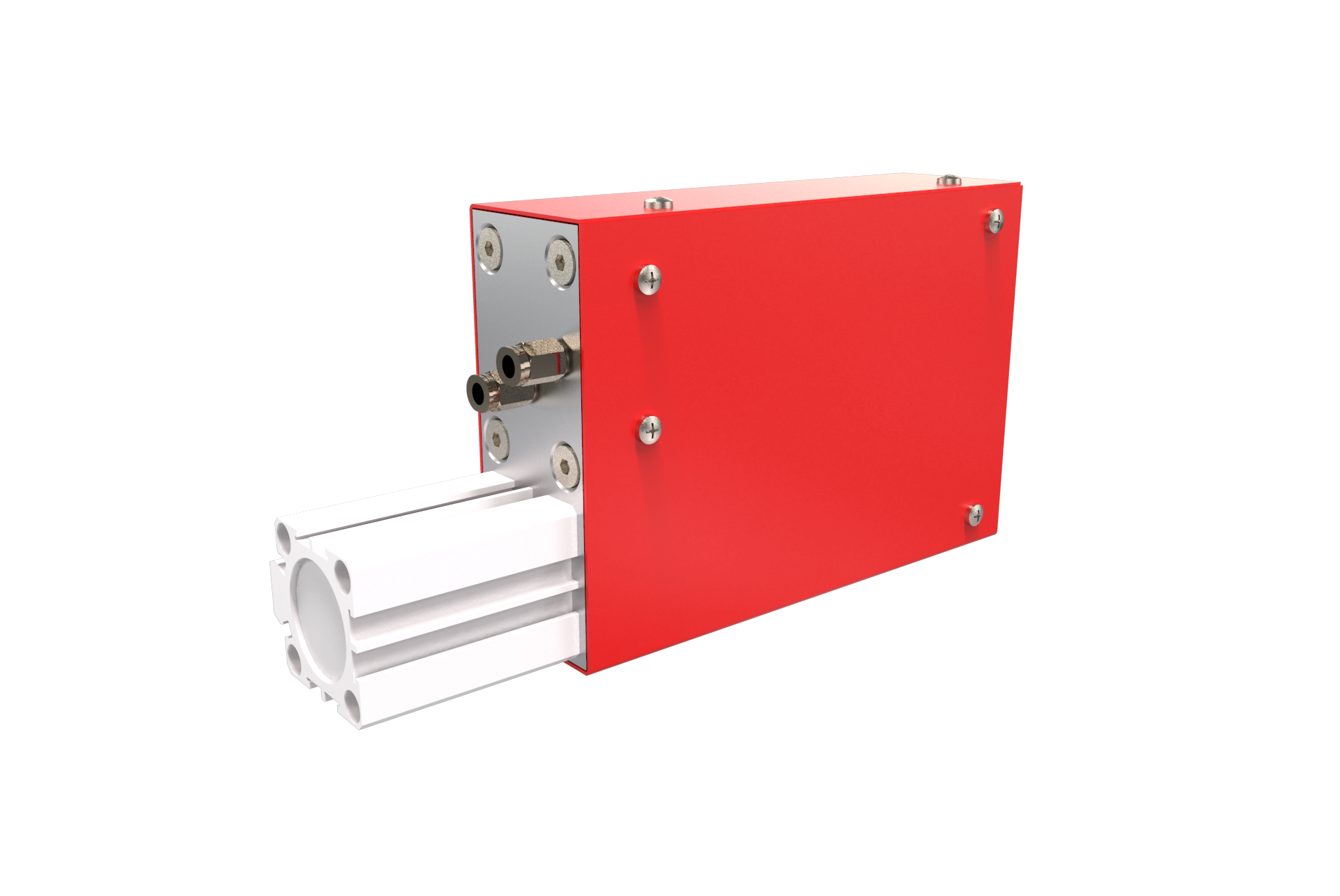

BRTFZ1030010 · 1 product image· Contact LVH for CAD files
Product Overview
The BRTFZ1030010 is a specialized mechanical sheet metal splitter for reliable separation of non-magnetic materials like aluminum and stainless steel. Utilizing a pneumatic rack-and-rod mechanism, it prevents double-sheet loading errors in automated stamping and bending cells.
The Borunte BRTFZ1030010 Non-Magnetic Splitter is an essential peripheral for manufacturers working with sheet materials that cannot be separated by traditional magnetic fanners. In automated stamping scenarios, adhesion between sheets caused by surface tension, oil films, or static electricity is a frequent failure point. The BRTFZ1030010 solves this through a robust mechanical intervention featuring a main push rod driven by a high-force pneumatic cylinder. This rod is equipped with specialized racks where the tooth pitch is selected based on the specific thickness of the plate material being processed. As the robot approaches to pick a sheet, the splitter engages the side of the stack, physically separating the top sheet from the rest. The main push rod has freedom to move vertically upwards, adapting to the changing height of the sheet stack automatically as parts are removed. LVH Systems sources the BRTFZ1030010 with full technical support and global procurement capabilities. Available for sourcing through LVH Systems global procurement network.
Key Capabilities
Industrial Grade
Built to industrial standards for reliable operation in demanding automation environments.
High Precision
Precision mechanical components deliver consistent, repeatable performance.
LVH Global Sourcing
Sourced through LVH Systems with full technical support and global procurement capabilities.
Typical Applications
The BRTFZ1030010 is available through LVH Systems with full technical support and application engineering.
Key Specifications
Critical performance parameters at a glance
Technical Specifications
Specifications
Industrial Applications
These products support advanced robotics, automation, and industrial motion systems where precision, durability, and integration quality are important.
Industrial Automation
Used in automation systems where dependable motion performance and integration quality are required.
Robotics
Supports robotic subsystems that require reliable motion, control, or feedback components.
Machine Building
Integrated into custom equipment and OEM platforms where motion-system performance matters.
Precision Equipment
Applied in specialist systems requiring stable performance, compact packaging, and dependable operation.
Material Handling
Used in handling, transfer, and positioning systems across industrial applications.
Custom Engineering
Selected for engineered systems where application-specific performance and packaging are critical.
Factory Modification & Custom Sourcing
This product supports custom configurations and equivalent sourcing
Available Modifications
- •Torque and speed ratio customization
- •Mounting interface modifications
- •Connector and wiring specifications
- •Housing and enclosure options
Sourcing Options
- •Standard product sourcing
- •Equivalent product identification
- •Replacement part sourcing
- •Volume pricing (MOQ may apply)
Request Pricing & Availability
Submit an RFQ for standard products, custom configurations, or equivalent alternatives
Frequently Asked Questions
Technical answers sourced from engineering specifications and integration guides.
Magnetic splitters only work on carbon steel. Materials like aluminum, stainless steel, and plastics do not respond to magnets. The BRTFZ1030010 uses a physical rack-and-rod mechanism to separate the top sheet regardless of magnetic properties.
