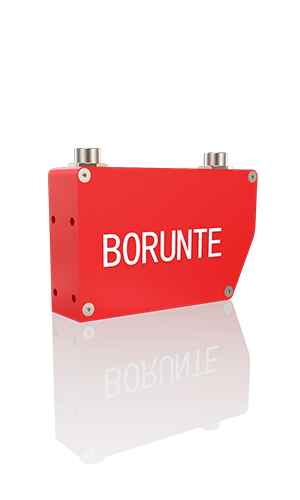

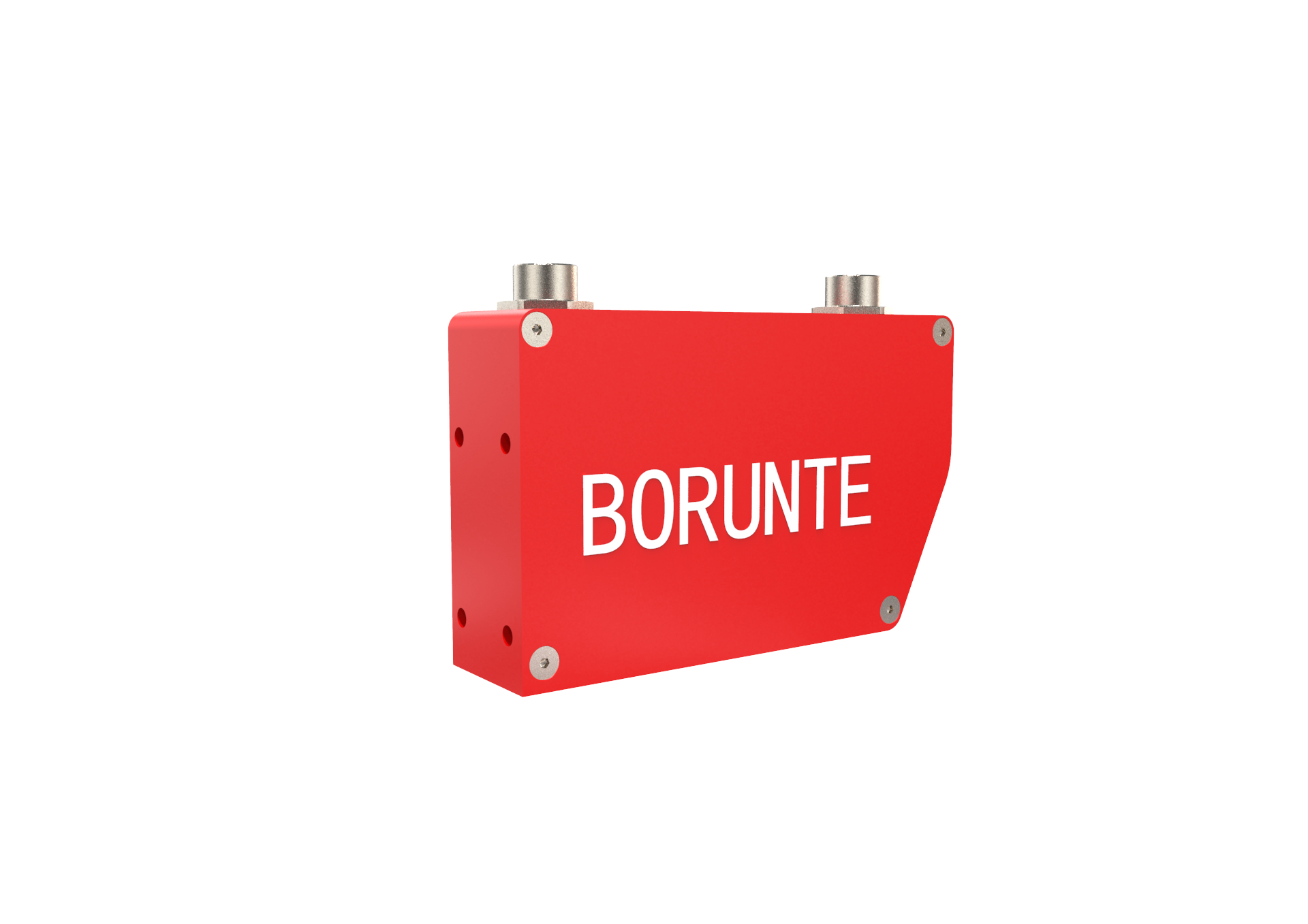

Borunte BRTHF2001010 Weld Seam Tracking Sensor

The BRTHF2001010 is a high-accuracy weld seam tracking sensor for real-time path compensation during robotic welding. Featuring advanced scanning algorithms, it solves dimensional and positioning deviations for butt, lap, corner, and pipe-plate joints in medium and thick plates.

The Borunte BRTHF2001010 Weld Seam Sensor represents the elite level of feedback for automated metal fabrication. In large-scale welding, workpieces frequently suffer from dimensional variations, thermal distortion, or imprecise fixture placement causing the robot's pre-programmed path to deviate from the actual seam. The BRTHF2001010 is the tracking-specific version performing high-speed scans of the weld area immediately ahead of the arc. This sensor can accurately identify a wide variety of weld types including butt joints, lap joints, corner joints, bevel joints, and complex pipe-plate intersections. The real-time feedback loop between the sensor and the Borunte HC controller allows the robot to perform continuous path compensation, ensuring the welding torch maintains the perfect center-line and arc-gap throughout the process. This is particularly critical for the welding of medium and thick plates where significant heat causes the metal to creep during the weld cycle. LVH Systems sources the BRTHF2001010 for manufacturers in the construction machinery, shipbuilding, and heavy tank industries. Available for sourcing through LVH Systems global procurement network.
