BRTR09WDS5P0 5-Axis Servo Robot for 100-320T IMM
Full-servo 5-axis robot for 100T-320T IMM with 900mm vertical stroke for high-speed precision extraction.
1 / 2 · Click thumbnail to view

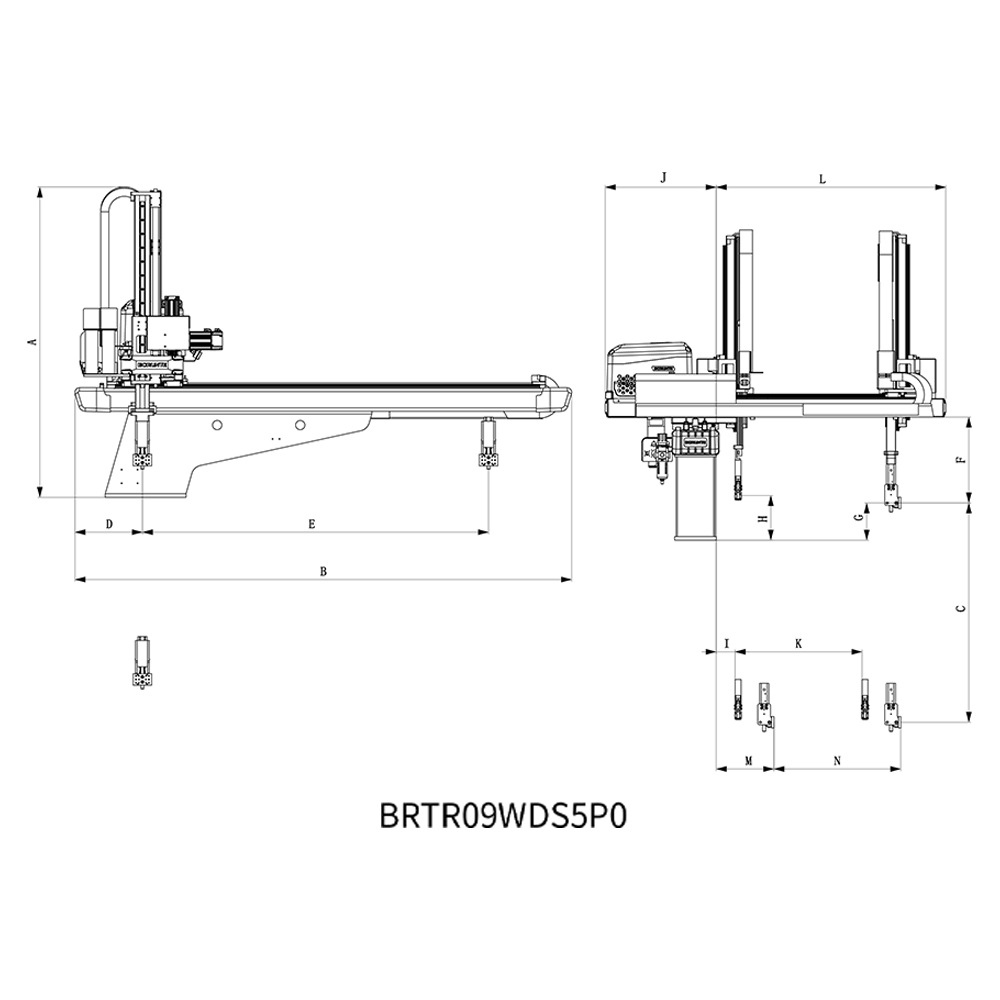

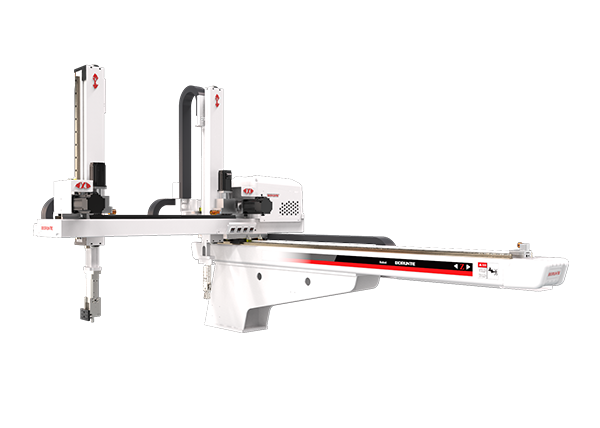

BRTR09WDS5P0 · 2 product images· Contact LVH for CAD files
Product Overview
The BRTR09WDS5P0 is a high-speed five-axis full-servo traverse robot for small-to-medium injection molding machines from 100T to 320T. With 900mm vertical stroke, it provides advanced part extraction and precision orientation for consumer and automotive plastics.
The Borunte BRTR09WDS5P0 is a high-performance solution for manufacturers requiring elite precision in the 100 to 320 ton IMM class. Full AC servo control over every axis including Vertical, Traverse, Crosswise, and dual wrist axes allows sub-second cycle times and extremely precise part orientation tasks such as placing parts onto precision assembly fixtures or sorting into multi-cavity grids. The 900mm vertical stroke provides reach needed for standard molds in this machine class. Built on rigid steel traverse beam minimizing deflection during high-acceleration moves ensuring plus or minus 0.1mm part placement repeatability. LVH Systems sources the BRTR09WDS5P0 for electronics, appliance, and medical device manufacturers, ensuring Euromap 67 interfacing and assisting with vacuum circuit design. Available for sourcing through LVH Systems global procurement network.
Key Capabilities
IMM Optimized
Specifically designed for horizontal injection molding machine integration with Euromap interfaces.
Sub-Second Extraction
High-speed extraction minimizes machine cycle time for maximum production efficiency.
Precision Placement
Accurate part orientation for downstream processing, degating, and assembly tasks.
Servo Controlled
Full servo control on primary axes for precise movement and repeatability.
Safety Integrated
Euromap 67/12 interface ensures safe synchronized operation with machine controllers.
LVH Global Sourcing
Sourced through LVH Systems with full IMM integration and tooling support.
Typical Applications
The BRTR09WDS5P0 is deployed in automotive plastic part extraction, consumer electronics housing production, medical device manufacturing, and high-volume packaging operations.
Key Specifications
Critical performance parameters at a glance
Technical Specifications
Specifications
Industrial Applications
These products support advanced robotics, automation, and industrial motion systems where precision, durability, and integration quality are important.
Industrial Automation
Used in automation systems where dependable motion performance and integration quality are required.
Robotics
Supports robotic subsystems that require reliable motion, control, or feedback components.
Machine Building
Integrated into custom equipment and OEM platforms where motion-system performance matters.
Precision Equipment
Applied in specialist systems requiring stable performance, compact packaging, and dependable operation.
Material Handling
Used in handling, transfer, and positioning systems across industrial applications.
Custom Engineering
Selected for engineered systems where application-specific performance and packaging are critical.
Factory Modification & Custom Sourcing
This product supports custom configurations and equivalent sourcing
Available Modifications
- •Torque and speed ratio customization
- •Mounting interface modifications
- •Connector and wiring specifications
- •Housing and enclosure options
Sourcing Options
- •Standard product sourcing
- •Equivalent product identification
- •Replacement part sourcing
- •Volume pricing (MOQ may apply)
Request Pricing & Availability
Submit an RFQ for standard products, custom configurations, or equivalent alternatives
Frequently Asked Questions
Technical answers sourced from engineering specifications and integration guides.
Designed for horizontal injection molding machines between 100 and 320 tons with necessary reach and lifting speed for work envelopes typical of this machine size.
