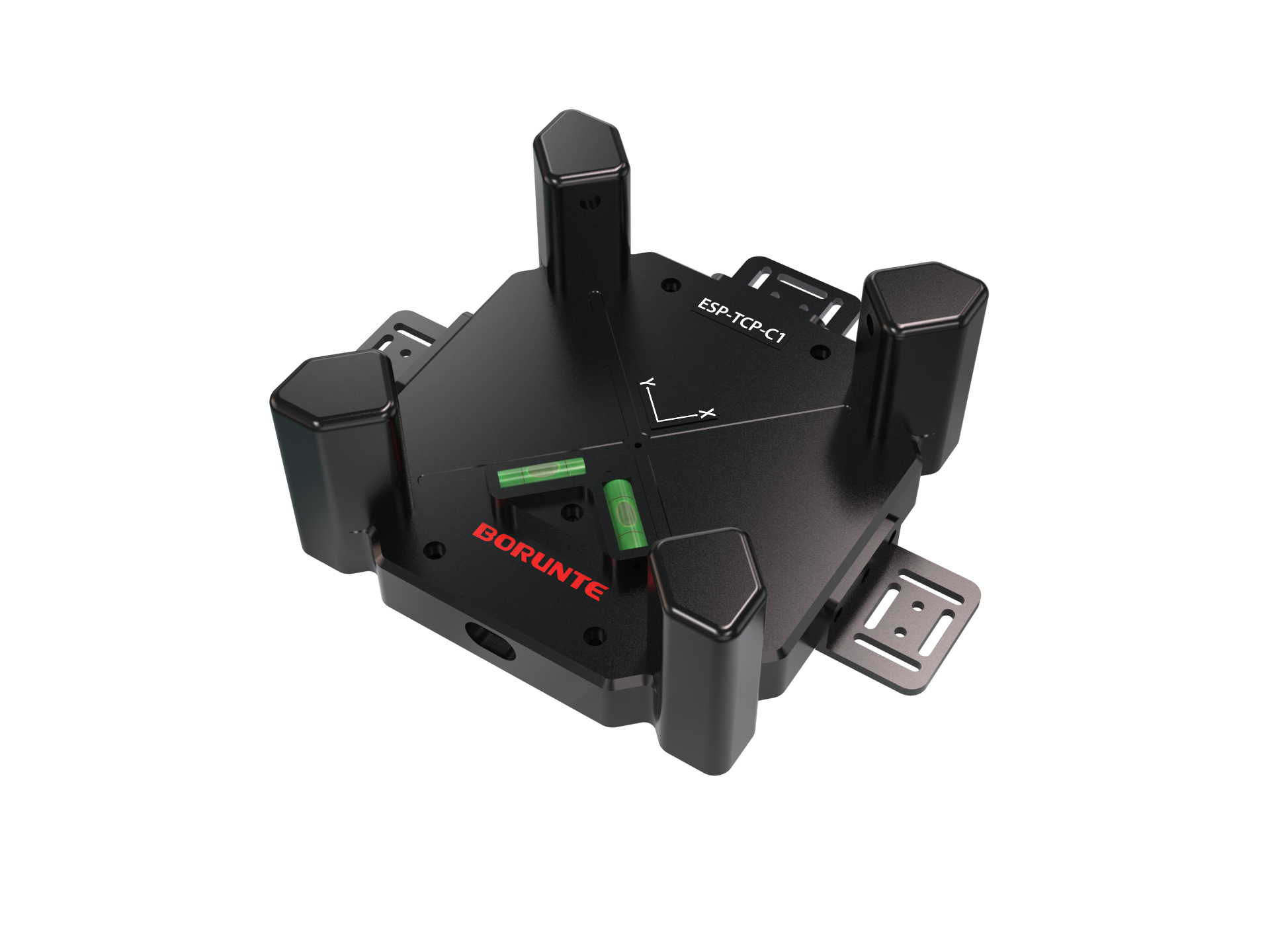

Borunte BRTTCP080250 Laser TCP Precision Self-Calibration Device

The BRTTCP080250 is an automated TCP Tool Center Point self-calibration device using high-precision laser harness detection. Designed for robotic end-tools between 0.5mm and 3mm in diameter, it automatically calculates the TCP coordinate system to ensure absolute positioning accuracy for welding and assembly.

The Borunte BRTTCP080250 is a sophisticated calibration peripheral designed to maintain the absolute accuracy of robotic work cells. In industrial robotics, the Tool Center Point TCP is the most critical coordinate. If the tool is slightly bent or the robot collides with a fixture, the TCP will shift resulting in ruined parts and process failure. The BRTTCP080250 solves this by automating the calibration process. Utilizing a high-precision laser harness, the device allows the robot to automatically plan a search path to intersect the beam. By confirming the coordinates at which the tool breaks the laser harness from multiple angles, the system's software automatically calculates the exact TCP coordinate system for the end tool. This device is particularly suitable for tools with a diameter between 0.5mm and 3mm such as fine welding torches, dispensing needles, or precision assembly probes. The BRTTCP080250 significantly reduces manual calibration time, turning a 20-minute manual task into a sub-minute automated routine. LVH Systems sources the BRTTCP080250 for manufacturers in high-end welding and electronics assembly sectors. Available for sourcing through LVH Systems global procurement network.
