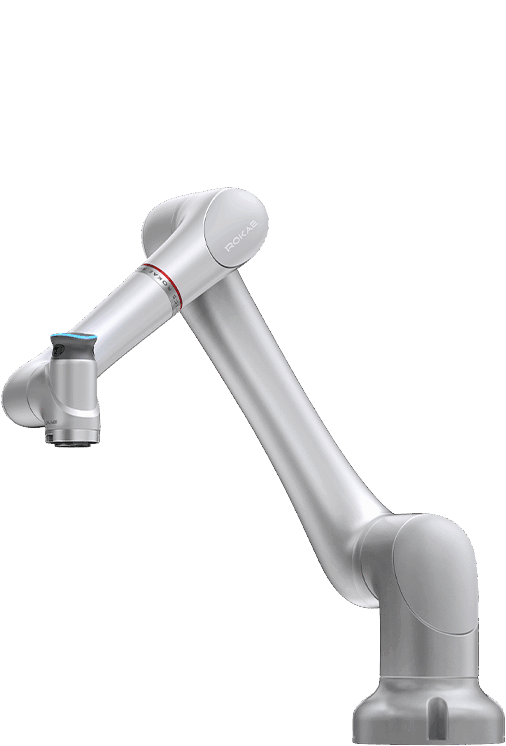

ROKAE xMate CR12-20/1.4 High-Inertia Collaborative Robot

The xMate CR12-20/1.4 is an enhanced high-inertia collaborative robot featuring 20kg payload and 1400mm reach. Built on the agile CR12 platform with boosted motor torque, it provides high-speed collaborative handling for large automotive and electronics components.

The ROKAE xMate CR12-20/1.4 is a specialized variant of the collaborative series engineered to provide an optimal ratio of reach to lifting power for high-density production environments. Featuring 20kg payload capacity on the streamlined 1.4-meter CR12 frame, this robot is specifically designed for high-inertia handling where agility is just as important as strength. This configuration utilizes reinforced gear reducers and higher-torque joint motors allowing the robot to move heavy part arrays or large end-of-arm tooling without sacrificing its plus or minus 0.03mm repeatability. The 7-axis architecture remains the core of its dexterity allowing the arm to reach around obstacles and maintain Tool Center Point precision in cramped machine tending workcells. Like all xMate models, the CR12-20/1.4 features all-axis torque sensing ensuring that collision detection and compliant motion are maintained at a level that supports safe human-robot interaction. LVH Systems sources the xMate CR12-20/1.4 for manufacturers who need the reach of a medium arm but the lifting power of a heavy-duty system providing specialized support for the calibration of torque sensitivity. Available for sourcing through LVH Systems global procurement network.
