DDP High Performance DC Digital Servo Drive
High performance DC powered digital servo drive with CANopen and DeviceNet networking for position velocity and torque control of brushless and brush motors supporting RSF FHA SHA and RH actuators

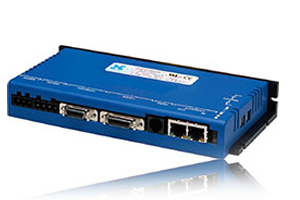

DDP · 1 product image· Contact LVH for CAD files
Product Overview
The DDP is a high-performance DC powered drive for position velocity and torque control of brushless and brush motors. Available in DDP-090-09 DDP-090-18 and DDP-090-36 models. DC24V supply for RSF FHA-mini actuators and DC48-90V for SHA series. CANopen/DeviceNet networking. Digital I/O 12 inputs 3 outputs. Dimensions 168 x 99 x 31 mm.
The DDP is a dedicated servo drive for precision motion control, providing communication, control-loop processing, and power delivery for compatible actuators and motors.
Servo Drive Capabilities
Harmonic Drive servo drives are optimised for use with FHA, SHA, RSF, and RKF series actuators. Both AC-line powered and DC-powered variants support position, velocity, and torque control with fieldbus networking and comprehensive digital I/O.
Fieldbus Networking
EtherCAT, CANopen, DeviceNet, MECHATROLINK-II, and CC-Link options across the series.
Full Control Modes
Position, velocity, and torque control with CSP, CSV, and CST cyclic sync modes.
Dedicated Actuator Support
Optimised gain tables and encoder interfaces for Harmonic Drive actuator families.
Autotuning
Automatic servo gain adjustment reduces commissioning time on compatible models.
Digital I/O
Multiple digital inputs and outputs for PLC integration, safety relays, and position switches.
Cabinet Mounting
Standard panel mount form factor for industrial control cabinet installation.
Compatible Actuator Families
The DDP is compatible with Harmonic Drive FHA-C, FHA-Mini, SHA, RSF, and RKF series actuators. Contact LVH Systems to confirm the correct drive model and firmware for your specific actuator and application requirements.
Key Specifications
Critical performance parameters at a glance
Technical Specifications
Overview
Compatible Actuators DDP-090-09
Compatible Actuators DDP-090-18
Compatible Actuators DDP-090-36
Product Attributes
Industrial Applications
These servo drives are applied in industrial control systems where precise motor control, communication support, and reliable axis management are required.
Servo Motion Control
Controls rotary and linear servo axes in automation systems that need accurate speed, torque, and position regulation.
Factory Automation
Used in machine tools, packaging lines, assembly equipment, and other automated production systems with networked motor control.
Networked Control Systems
Supports coordinated multi-axis systems where industrial communications and deterministic control matter.
Machine Builder Platforms
Integrated into OEM control cabinets and machine architectures that require compact, dependable servo amplifier solutions.
Retrofits & Upgrades
Useful in modernization projects where older motion platforms are upgraded to newer digital servo control hardware.
Precision Process Equipment
Applied in systems requiring stable servo behaviour for repetitive, high-accuracy industrial processes.
Factory Modification & Custom Sourcing
This product supports custom configurations and equivalent sourcing
Available Modifications
- •Torque and speed ratio customization
- •Mounting interface modifications
- •Connector and wiring specifications
- •Housing and enclosure options
Sourcing Options
- •Standard product sourcing
- •Equivalent product identification
- •Replacement part sourcing
- •Volume pricing (MOQ may apply)
Request Pricing & Availability
Submit an RFQ for standard products, custom configurations, or equivalent alternatives
Frequently Asked Questions
Technical answers sourced from engineering specifications and integration guides.
The DDP is a DC-powered drive for position, velocity, and torque control. Available as DDP-090-09, DDP-090-18, and DDP-090-36. Uses DC24V for RSF and FHA-Mini, DC48-90V for SHA actuators.
