LAH Linear Actuator Precision Ball Screw
Compact precision linear actuator with ball screw providing positioning accuracy better than 4 microns and repeatability of 1 micron
1 / 2 · Click thumbnail to view

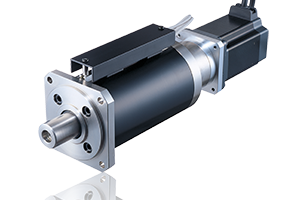

LAH · 2 product images· Contact LVH for CAD files
Product Overview
LAH series compact linear actuators offer high-resolution and high-thrust. Precision ball screw provides positioning accuracy better than 4 microns and repeatability of 1 micron. Available in LAH-46 for DC servo motors or stepper motors. Stroke 10mm or 30mm. Maximum thrust force 390N.
The LAH is a fully integrated rotary actuator combining servo motor, harmonic gear reducer, encoders, servo electronics, and compact mechanical packaging in a single assembly.
Precision Linear Motion
Harmonic Drive linear actuators use precision ball screw mechanisms to convert rotary servo motor output into controlled linear motion. High resolution, low lost motion, and compact form factors make them suited for precision instrumentation and automation applications.
Sub-micron Resolution
Precision ball screw delivers high linear resolution for demanding measurement and positioning.
High Accuracy
Positioning accuracy to sub-4-micron level depending on model selection.
Low Lost Motion
Minimal backlash and low lost motion for precise bidirectional positioning.
Self-Locking Option
High thrust LBC series provides self-locking to maintain position without servo power.
Servo Motor Drive
DC servo or stepper motor variants available for flexible system integration.
Compact Design
Compact actuator housings suited for integration in precision instruments and machines.
Typical Applications
The LAH suits measuring instruments, test and inspection systems, optical equipment, semiconductor manufacturing, LCD manufacturing, precision laboratory automation, and industrial clamping and pressing applications.
Key Specifications
Critical performance parameters at a glance
Technical Specifications
Overview
LAH-46 10mm Stroke
LAH-46 30mm Stroke
Product Attributes
Industrial Applications
These linear actuators are used where controlled linear motion, compact installation, and repeatable performance are required in industrial equipment.
Linear Positioning
Used in positioning stages, stops, and transfer devices where controlled linear travel is central to the mechanism.
Factory Automation
Supports machine automation tasks such as pushing, lifting, clamping, and guided motion in production equipment.
Packaging Equipment
Applied in sealing, feeding, indexing, and product-handling systems requiring repeatable linear movement.
Inspection & Lab Systems
Used in compact motion platforms where clean linear movement is required for measurement or handling tasks.
OEM Subassemblies
Integrated into machine-builder assemblies that need packaged linear motion without designing from scratch.
Custom Machinery
Supports specialist machine builds that require dependable linear actuation in limited installation space.
