RTL CANopen AC Servo Drive
CANopen networked 100 percent digital AC servo drive for brushless or brush motors operating from single or three-phase AC mains with continuous power output to 4 kW supporting FHA-C actuators with 14-wire incremental encoder interface

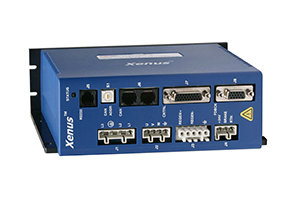

RTL · 1 product image· Contact LVH for CAD files
Product Overview
The RTL combines CANopen networking with 100 percent digital control of brushless or brush motors in AC-line powered package operating from single or three-phase mains with continuous power output to 4 kW. Available in RTL-230-18 and RTL-230-36 models. Supports FHA-8C FHA-11C FHA-14C FHA-17C FHA-25C FHA-32C FHA-40C actuators with 14-wire incremental encoder. Digital I/O 12 inputs 4 outputs. Dimensions 191 x 140 x 64 mm.
The RTL is a dedicated servo drive for precision motion control, providing communication, control-loop processing, and power delivery for compatible actuators and motors.
Servo Drive Capabilities
Harmonic Drive servo drives are optimised for use with FHA, SHA, RSF, and RKF series actuators. Both AC-line powered and DC-powered variants support position, velocity, and torque control with fieldbus networking and comprehensive digital I/O.
Fieldbus Networking
EtherCAT, CANopen, DeviceNet, MECHATROLINK-II, and CC-Link options across the series.
Full Control Modes
Position, velocity, and torque control with CSP, CSV, and CST cyclic sync modes.
Dedicated Actuator Support
Optimised gain tables and encoder interfaces for Harmonic Drive actuator families.
Autotuning
Automatic servo gain adjustment reduces commissioning time on compatible models.
Digital I/O
Multiple digital inputs and outputs for PLC integration, safety relays, and position switches.
Cabinet Mounting
Standard panel mount form factor for industrial control cabinet installation.
Compatible Actuator Families
The RTL is compatible with Harmonic Drive FHA-C, FHA-Mini, SHA, RSF, and RKF series actuators. Contact LVH Systems to confirm the correct drive model and firmware for your specific actuator and application requirements.
