HP8 Miniature Planetary Gearhead for Small Servomotors

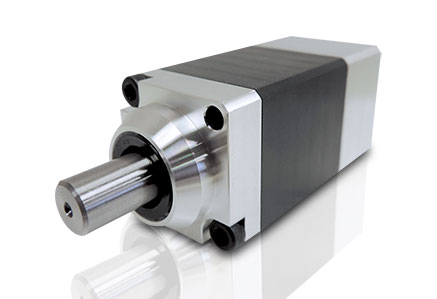

Ultra-compact 25mm square miniature planetary gearhead for small servomotors 5W to 20W with CP removable hub pinion or HP standalone pinion ratios 5 16 and 25 for semiconductor and medical applications
1 / 4 · Click thumbnail to view
HP8 · 4 product images· Contact LVH for CAD files
Product Overview

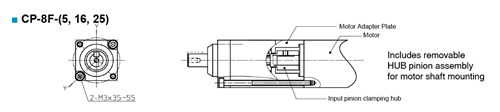

The HP8 miniature gearhead connects to small servomotors 5W-20W to create ultra-compact high performance servo actuators. Available in CP version with removable input hub pinion assembly or HP version with standalone pinion with precision through bore. Size 25mm square ratios 5 16 and 25. Backlash less than 30 arc-min. Rated torque 0.4 to 1.57 Nm. Quick delivery. Ideal for semiconductor and medical applications.
The HP8 is a fully integrated rotary actuator combining servo motor, harmonic gear reducer, encoders, servo electronics, and compact mechanical packaging in a single assembly.
Servo Mount Gearhead Architecture
Harmonic Planetary and Harmonic Drive gearheads mount directly to standard servo motors using a flange or shaft input interface. The Quick Connect coupling system allows motor exchange without realignment. The cross roller output bearing provides direct load support.
Quick Connect Motor Mount
Rapid motor exchange without realignment tools, compatible with most servo motor flange standards.
Low Backlash
Less than 3 arc-min standard. Less than 1 arc-min available as an option on most series.
Cross Roller Output
Integrated cross roller bearing supports radial, axial, and moment loads without additional bearings.
Continuous Compensation
Continuous backlash compensation maintains low backlash throughout the gear life.
High Torsional Stiffness
High stiffness minimises compliance in the drive train for precise dynamic positioning.
Grease Lubricated for Life
No maintenance lubrication required over the operating life of the gearhead.
Typical Applications
The HP8 suits servo motor driven robot joints, precision index tables, semiconductor wafer stages, laser beam steering, AGV and AMR propulsion drives, and any precision motion application requiring a servo mount gearhead with low backlash and high moment stiffness.
