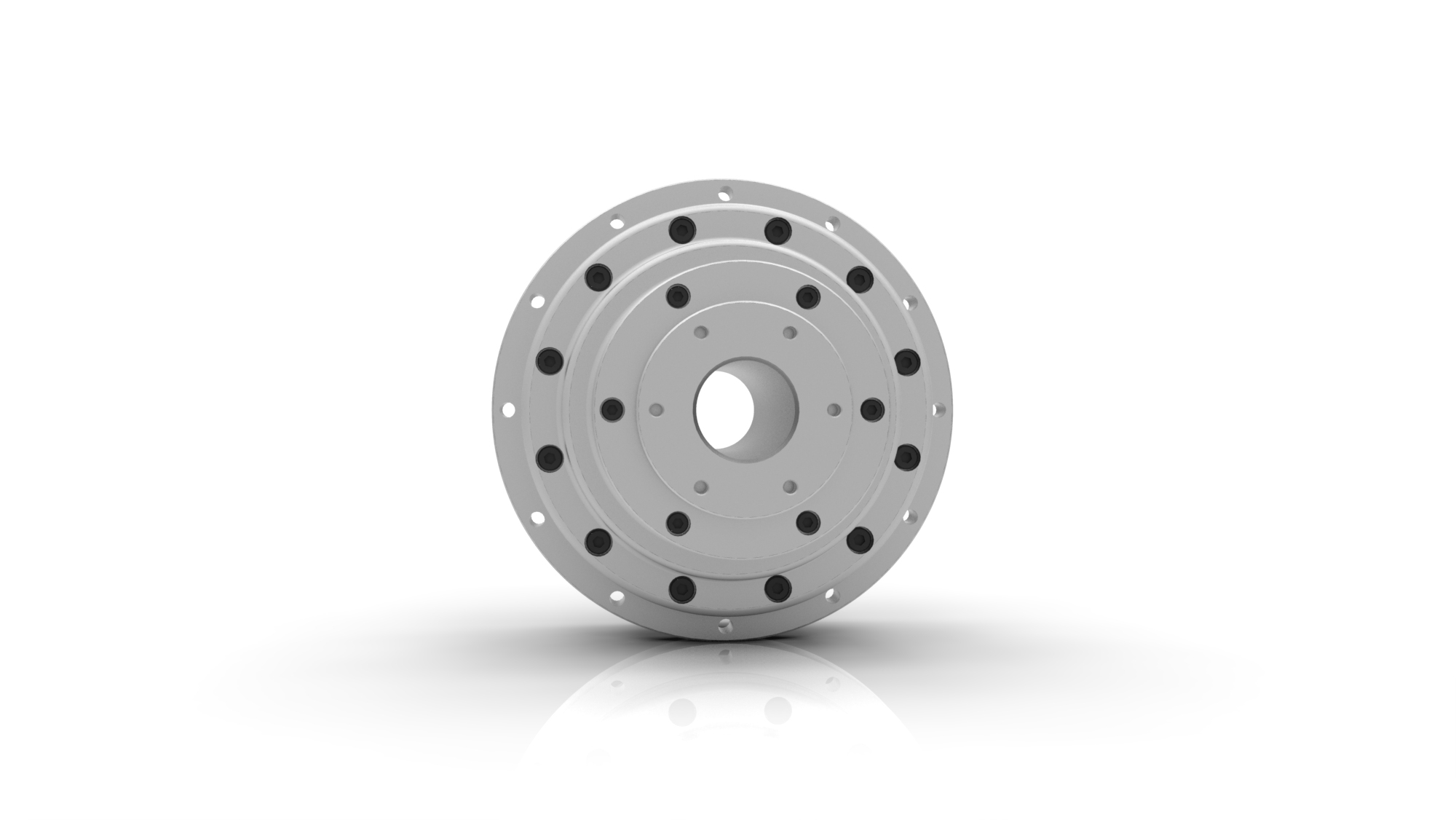

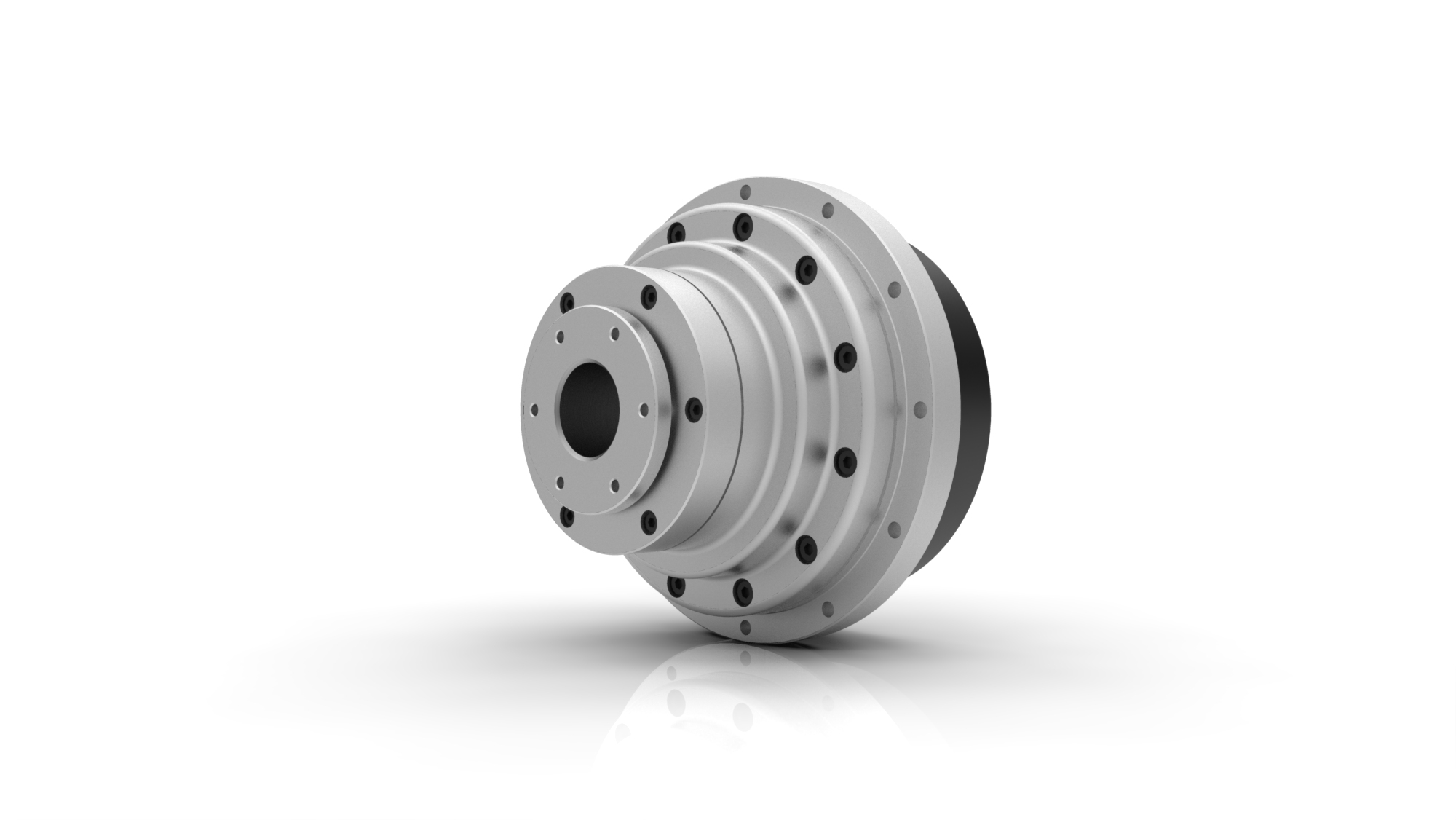

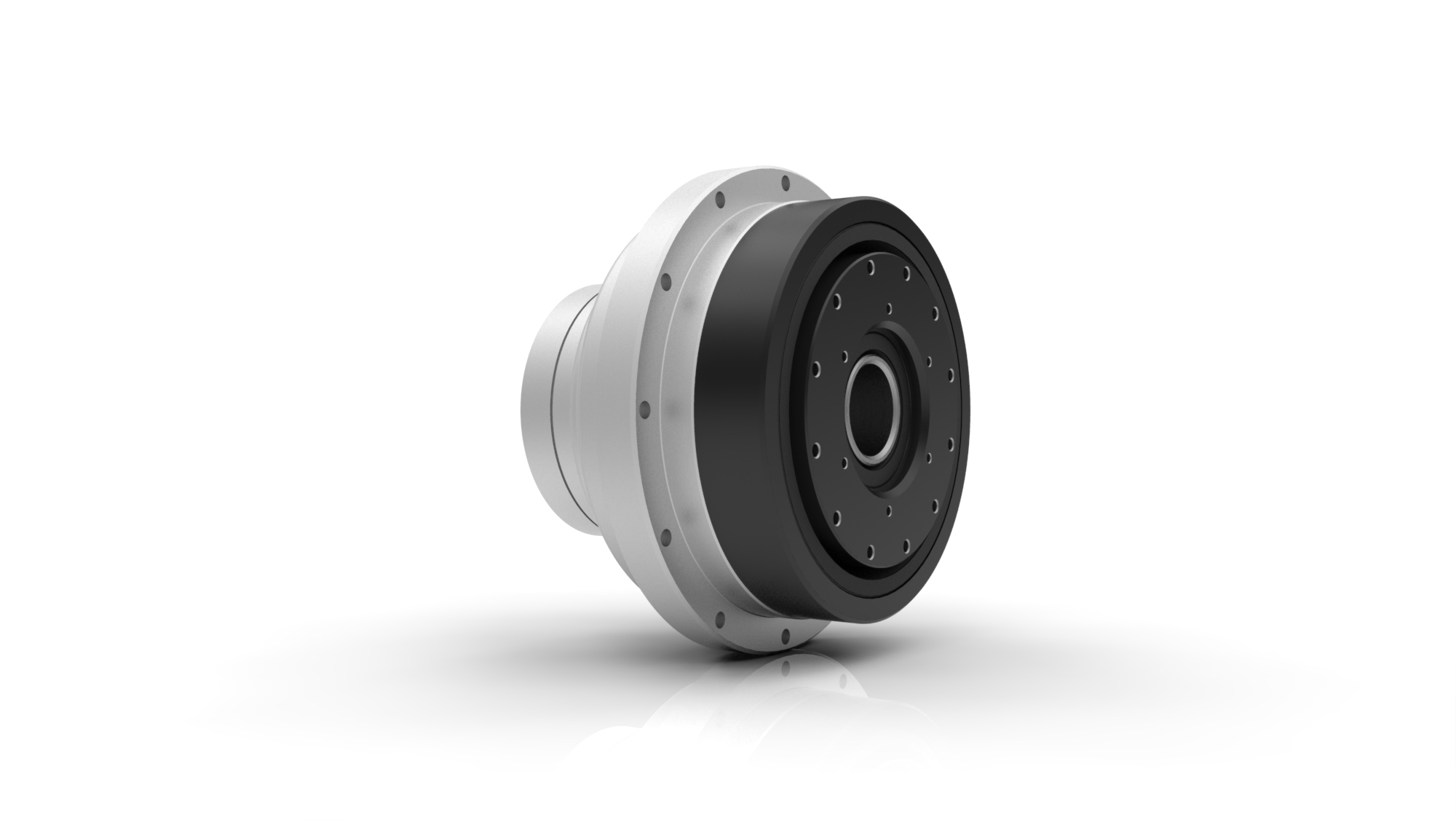

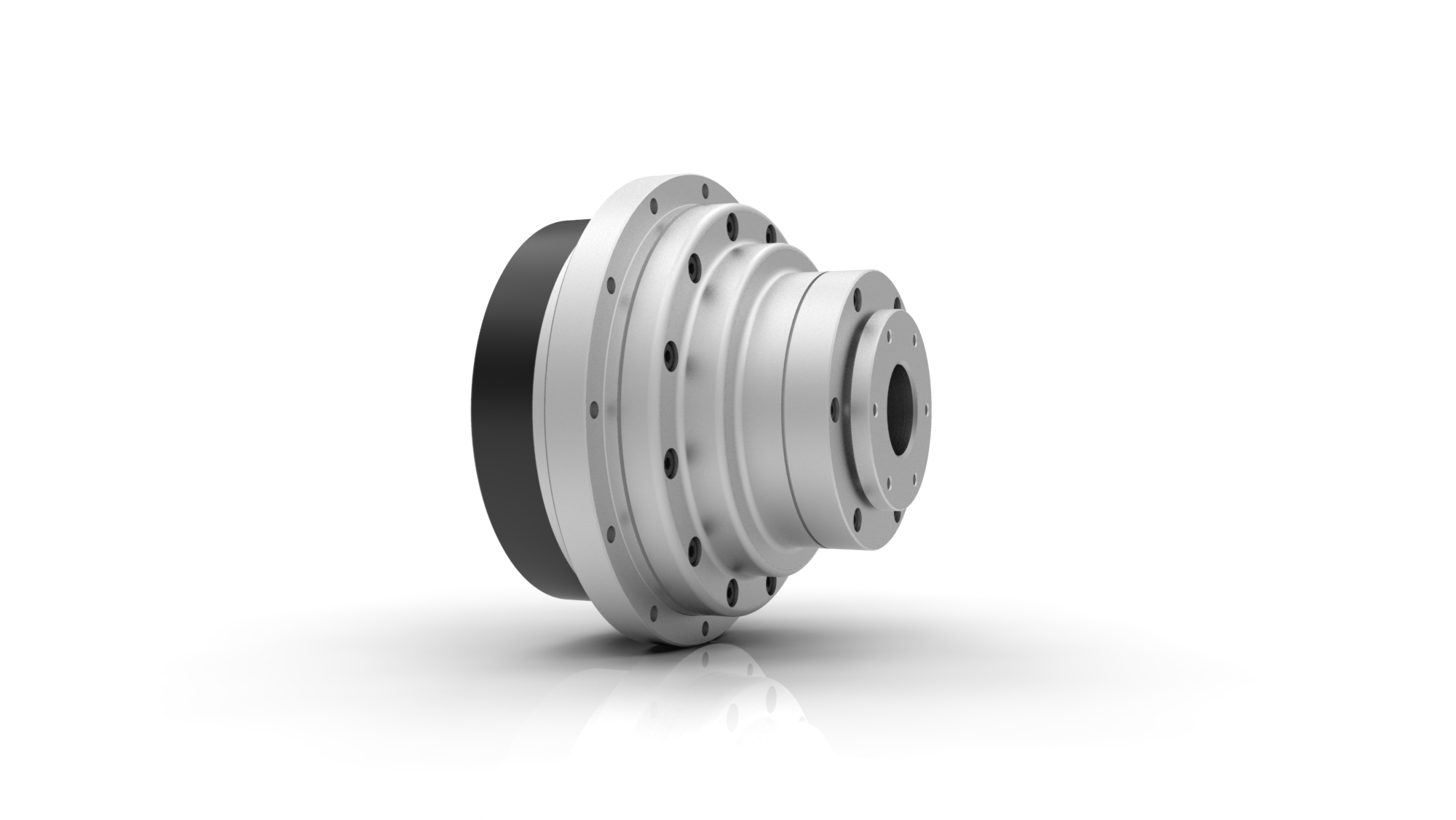

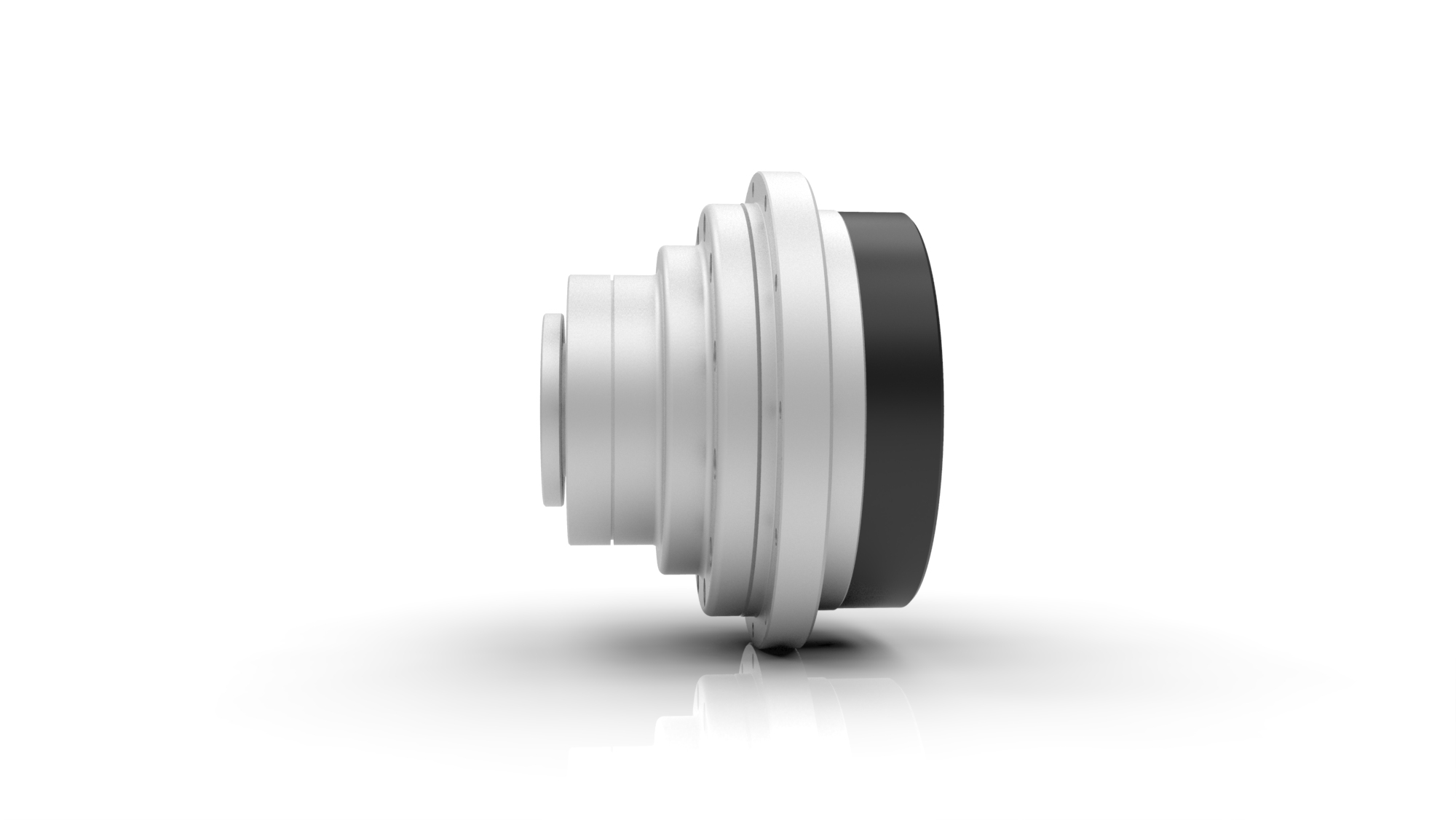

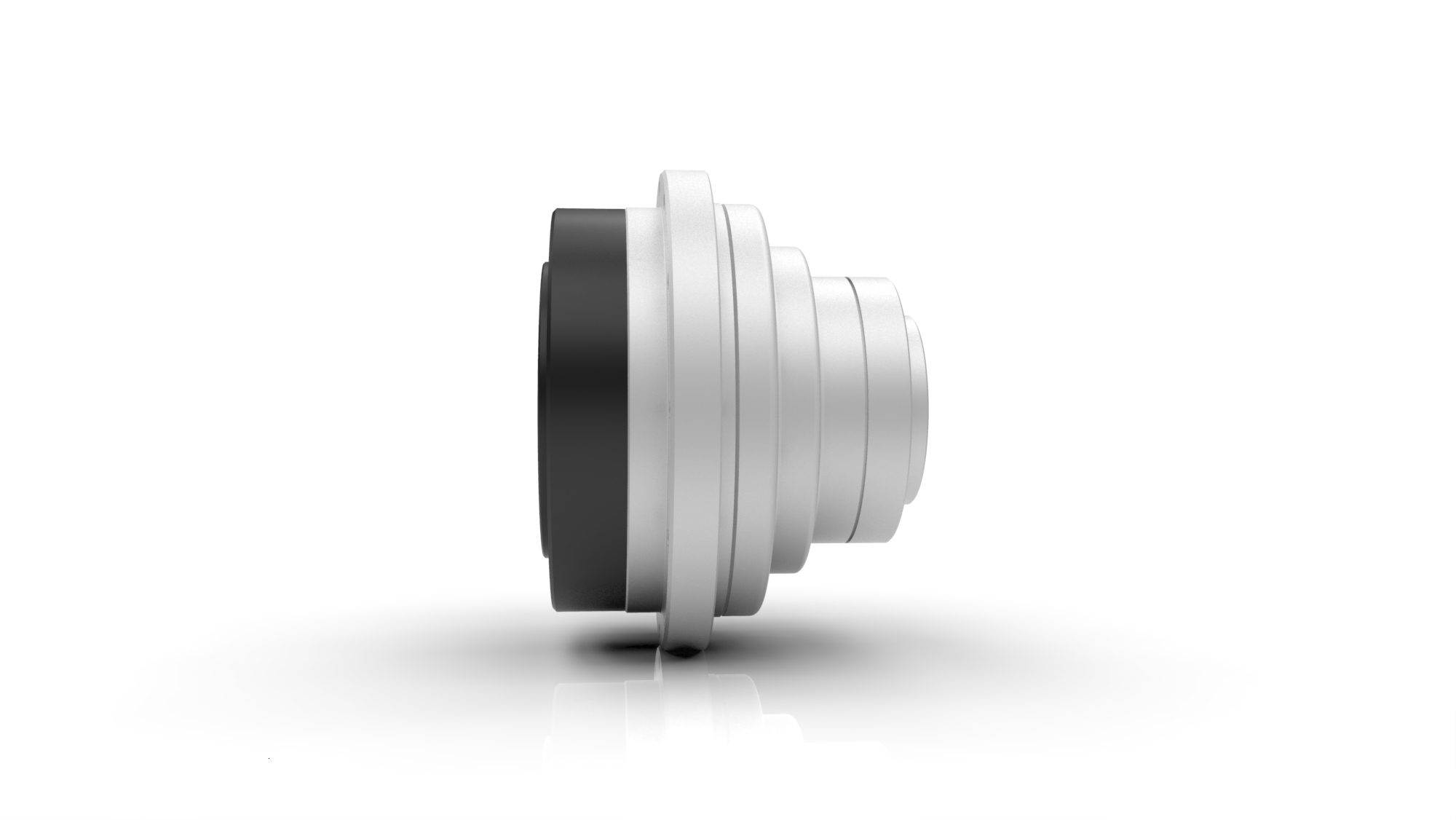

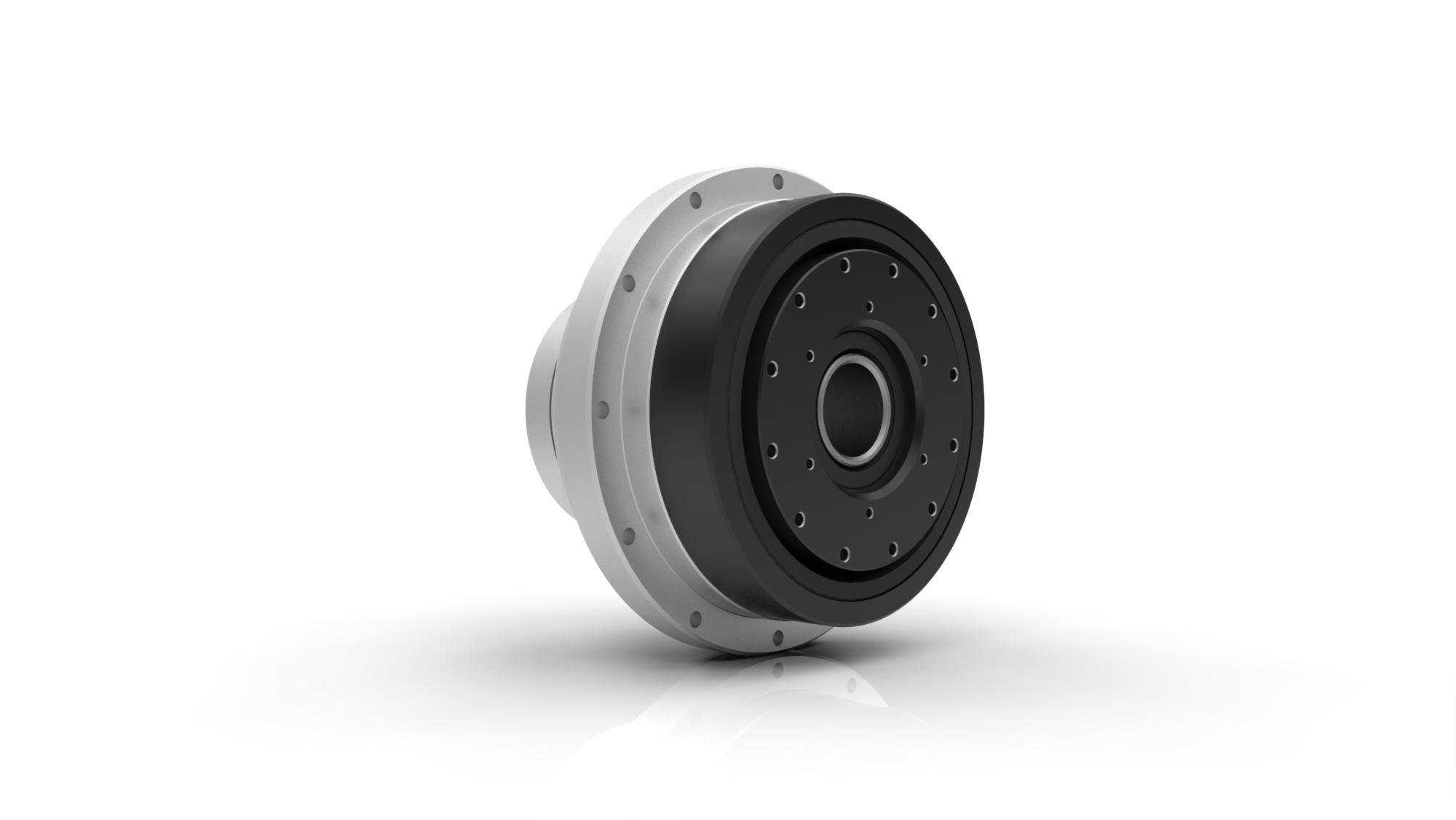

HPF Hollow Shaft Harmonic Planetary Gear Unit
High-torque hollow shaft Harmonic Planetary gear unit with extra-large cross roller output bearing
1 / 7 · Click thumbnail to view
HPF · 7 product images· Contact LVH for CAD files
Product Overview
HPF hollow shaft Harmonic Planetary gear unit. 2 frame sizes 25 and 32mm hollow shaft. Ratio 11. Peak torque 100 to 200 Nm. Backlash less than 3 arc-min.
The HPF is a fully integrated rotary actuator combining servo motor, harmonic gear reducer, encoders, servo electronics, and compact mechanical packaging in a single assembly.
Servo Mount Gearhead Architecture
Harmonic Planetary and Harmonic Drive gearheads mount directly to standard servo motors using a flange or shaft input interface. The Quick Connect coupling system allows motor exchange without realignment. The cross roller output bearing provides direct load support.
Quick Connect Motor Mount
Rapid motor exchange without realignment tools, compatible with most servo motor flange standards.
Low Backlash
Less than 3 arc-min standard. Less than 1 arc-min available as an option on most series.
Cross Roller Output
Integrated cross roller bearing supports radial, axial, and moment loads without additional bearings.
Continuous Compensation
Continuous backlash compensation maintains low backlash throughout the gear life.
High Torsional Stiffness
High stiffness minimises compliance in the drive train for precise dynamic positioning.
Grease Lubricated for Life
No maintenance lubrication required over the operating life of the gearhead.
Typical Applications
The HPF suits servo motor driven robot joints, precision index tables, semiconductor wafer stages, laser beam steering, AGV and AMR propulsion drives, and any precision motion application requiring a servo mount gearhead with low backlash and high moment stiffness.
Key Specifications
Critical performance parameters at a glance
Technical Specifications
Overview
Product Attributes
Industrial Applications
These servo-mount gearheads are used where motor compatibility, compact packaging, and precision motion transmission are needed in a complete gearbox format.
Servo Axis Reduction
Pairs with servo motors in factory automation, robotics, and machinery where reduced speed and increased output torque are required.
Packaging & Converting
Supports motion axes in packaging, labelling, and converting systems where compact drivetrains and stable positioning are essential.
Robot Peripheral Axes
Used on auxiliary axes, end-of-arm devices, and support mechanisms that need precise servo-driven output motion.
Index Tables & Feed Systems
Works well in indexing mechanisms, feeders, and transfer systems where repeatable angular motion is important.
OEM Motion Modules
Simplifies motion subsystem design for OEMs needing a packaged reducer with predictable motor-mount integration.
Precision Equipment
Supports analytical, optical, and specialty machinery requiring compact servo-ready reduction stages.
Factory Modification & Custom Sourcing
This product supports custom configurations and equivalent sourcing
Available Modifications
- •Torque and speed ratio customization
- •Mounting interface modifications
- •Connector and wiring specifications
- •Housing and enclosure options
Sourcing Options
- •Standard product sourcing
- •Equivalent product identification
- •Replacement part sourcing
- •Volume pricing (MOQ may apply)
Request Pricing & Availability
Submit an RFQ for standard products, custom configurations, or equivalent alternatives
Frequently Asked Questions
Technical answers sourced from engineering specifications and integration guides.
The HPF is a hollow shaft Harmonic Planetary gear unit with extra-large cross roller output bearing. The hollow shaft allows cables, shafts, ball screws, or lasers to pass through the axis.
