HPN-L Face-Mount Harmonic Planetary Gearbox Value Series
Face-mount value series helical planetary gearbox in 5 frame sizes with ratios 3:1 to 50:1 peak torque 9 to 752 Nm backlash less than 5 arc-min with fast delivery and competitive pricing
1 / 8 · Click thumbnail to view

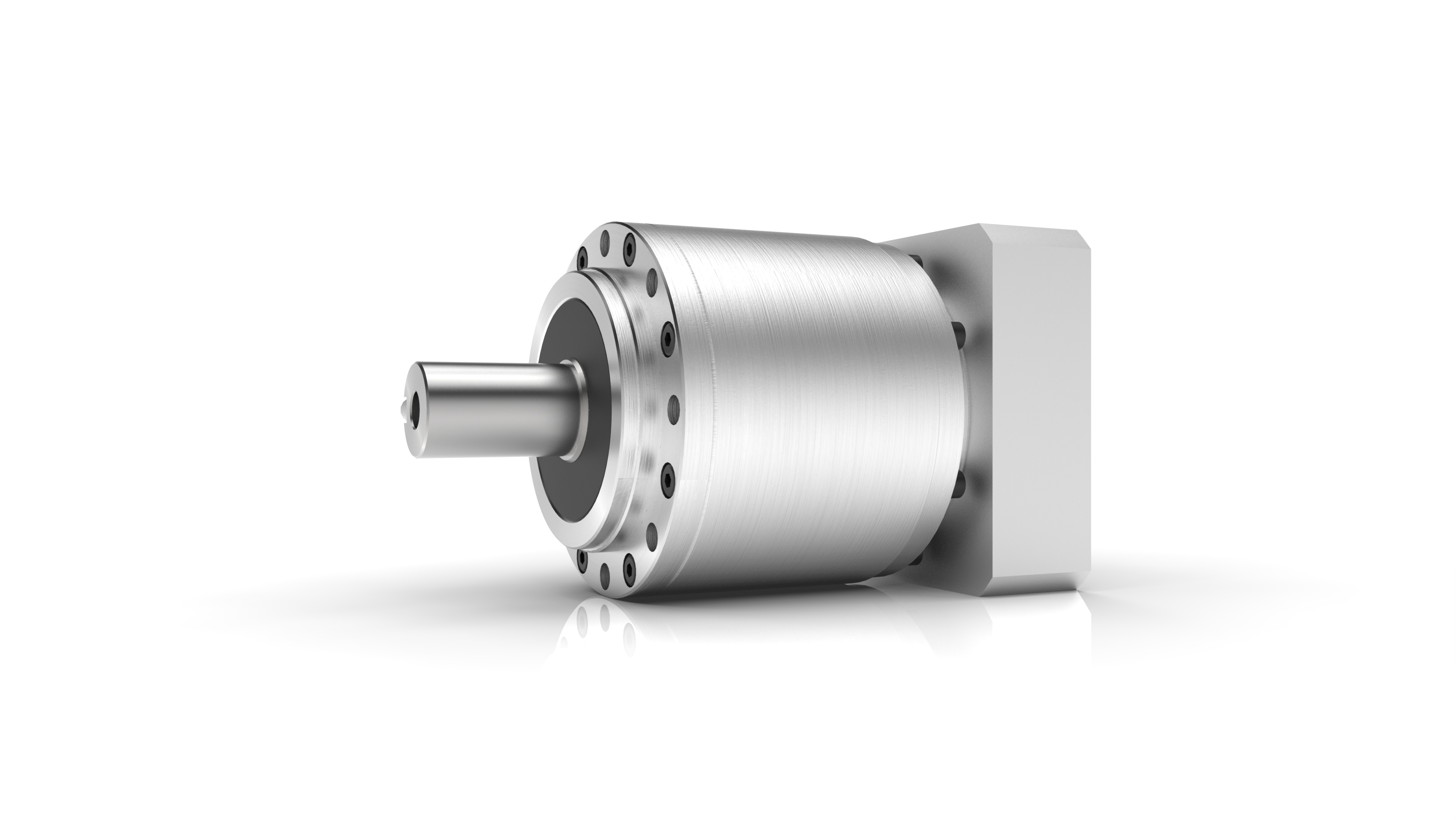

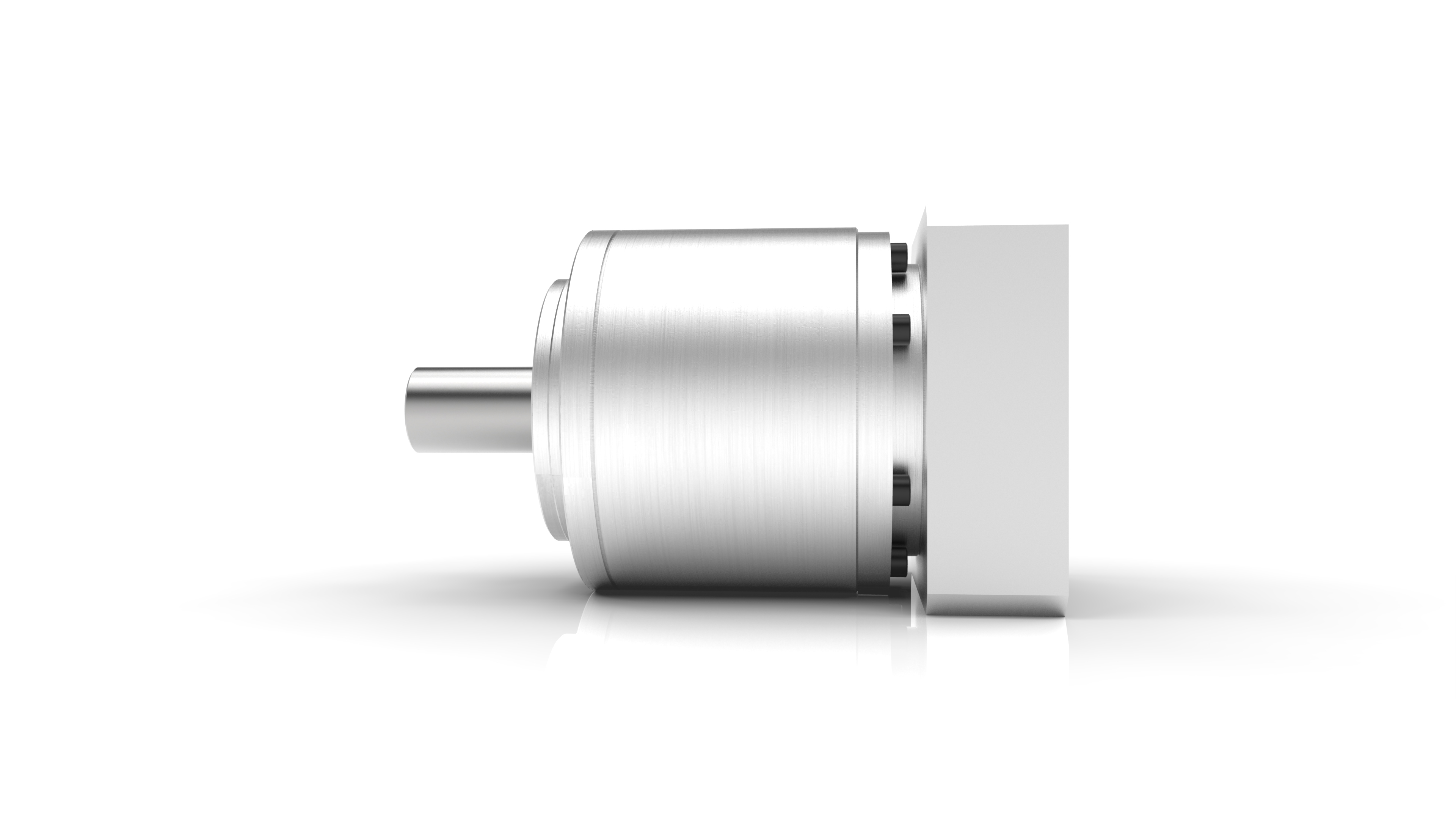

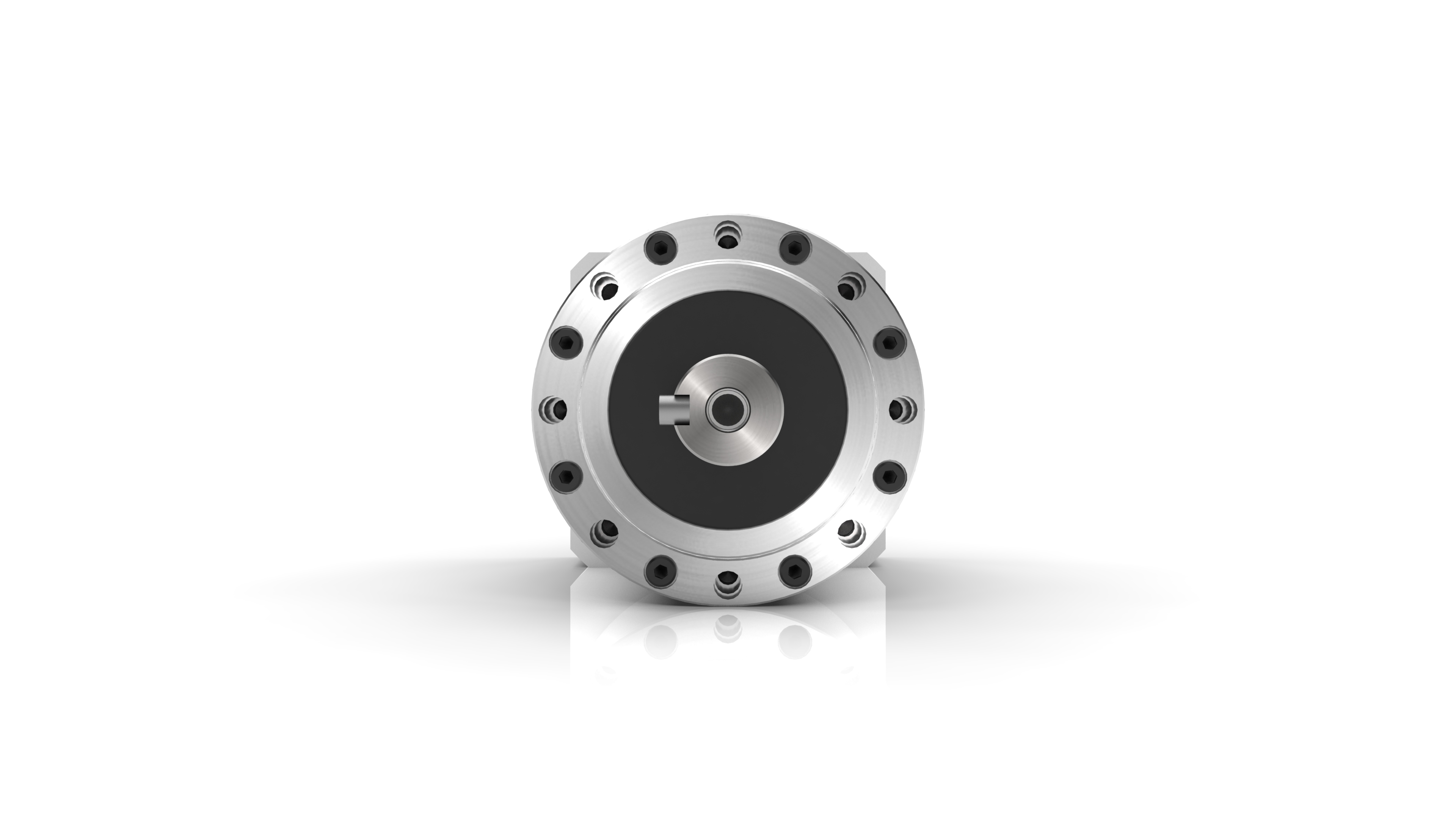

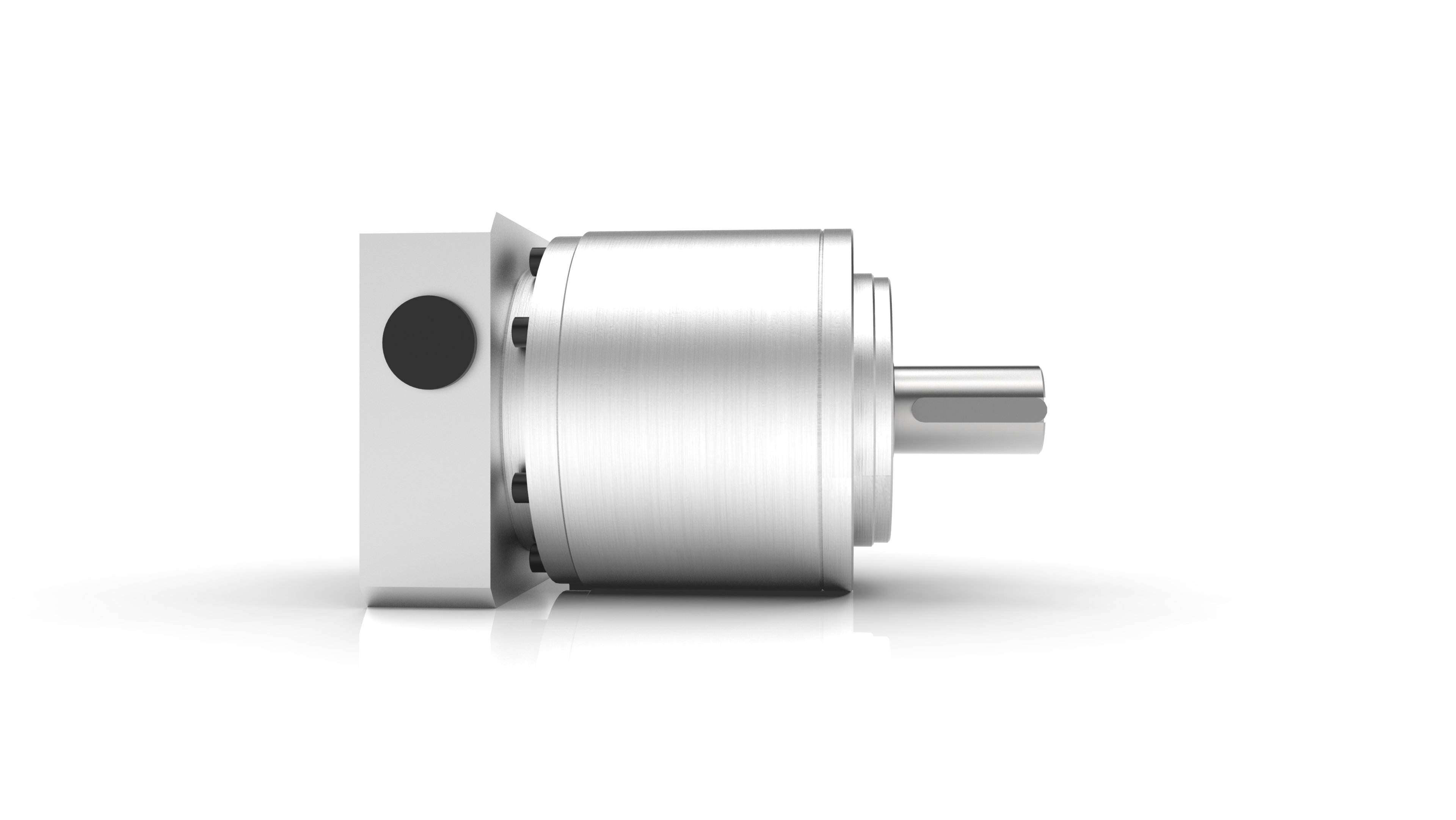

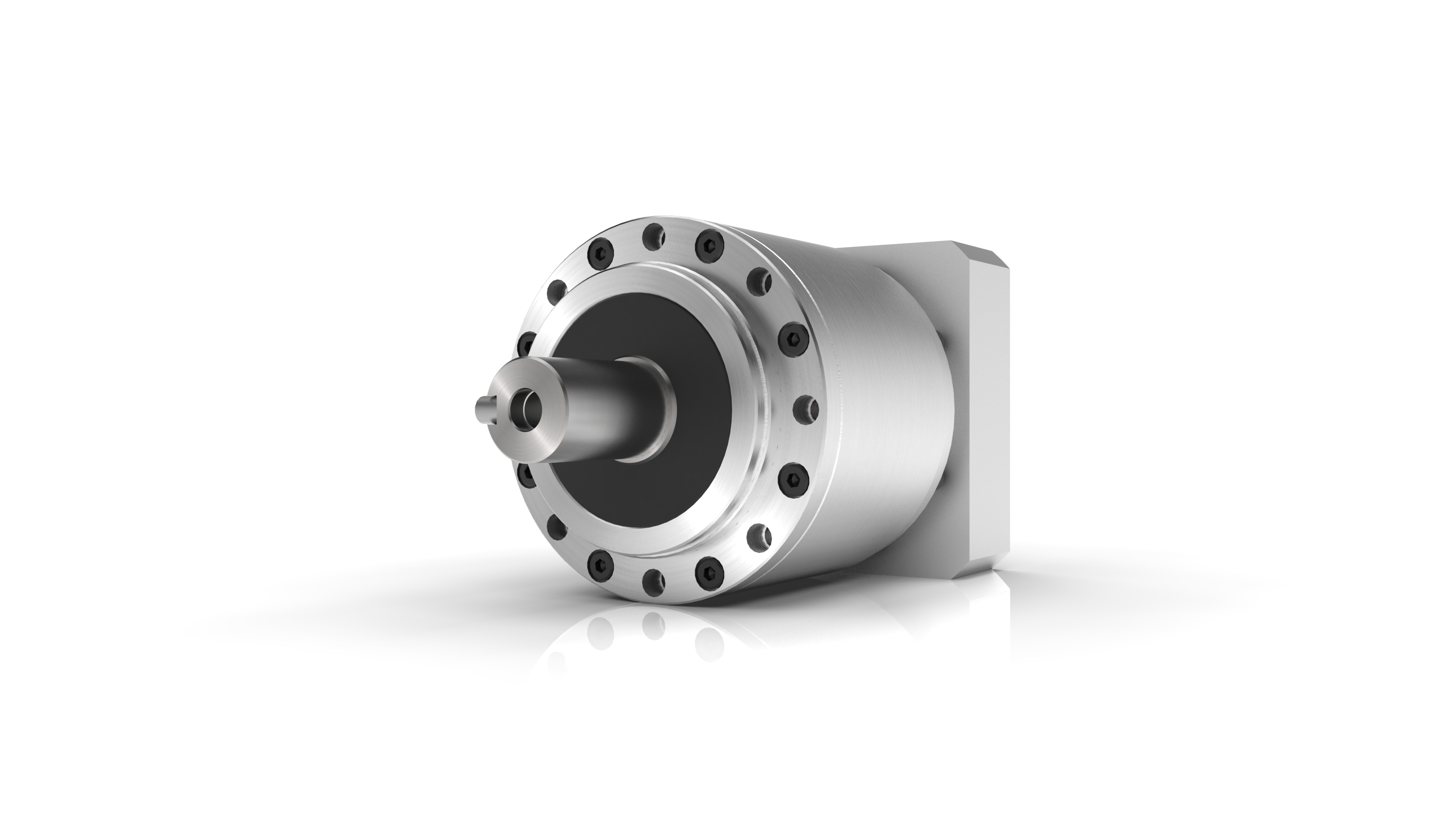

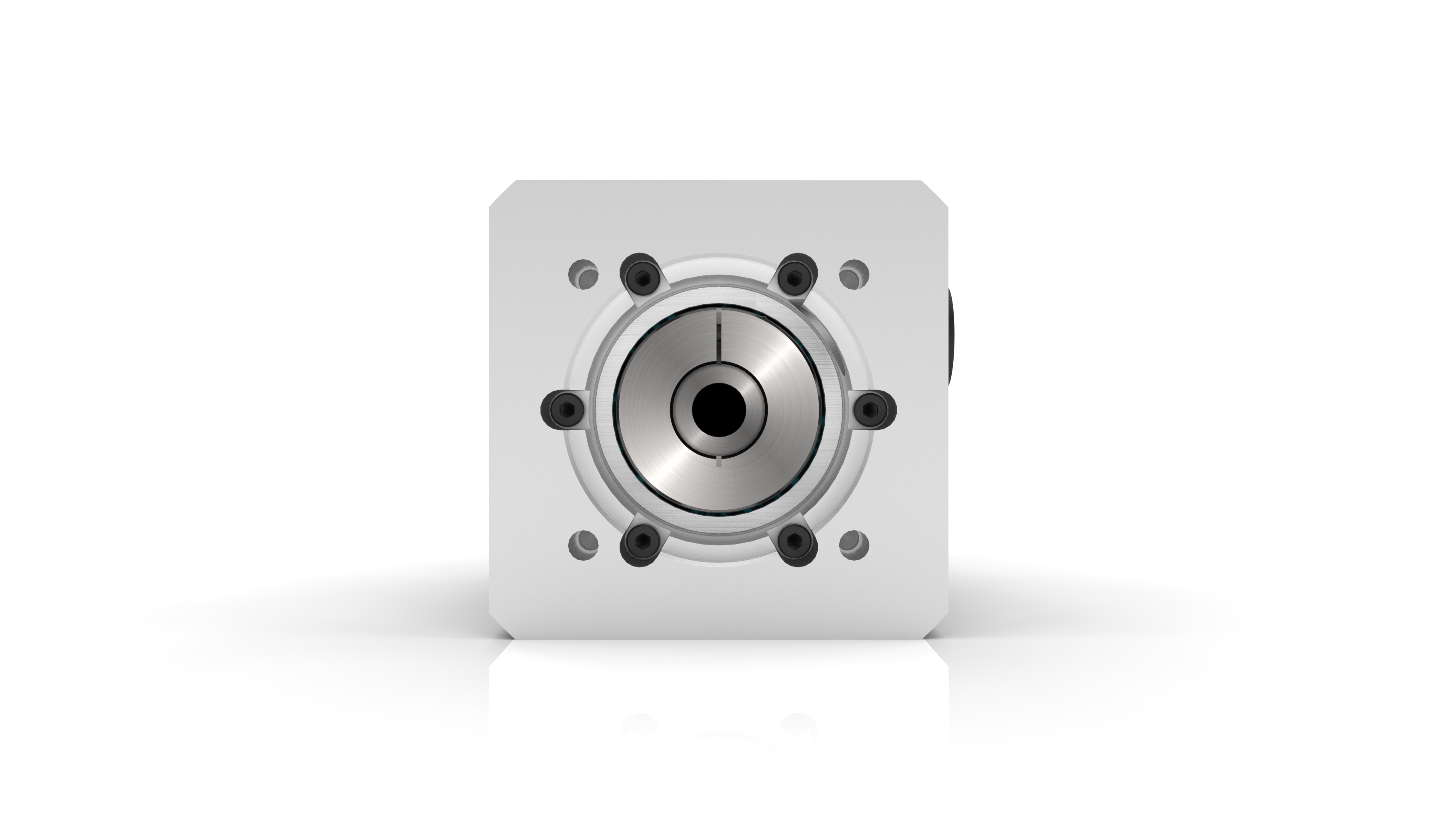

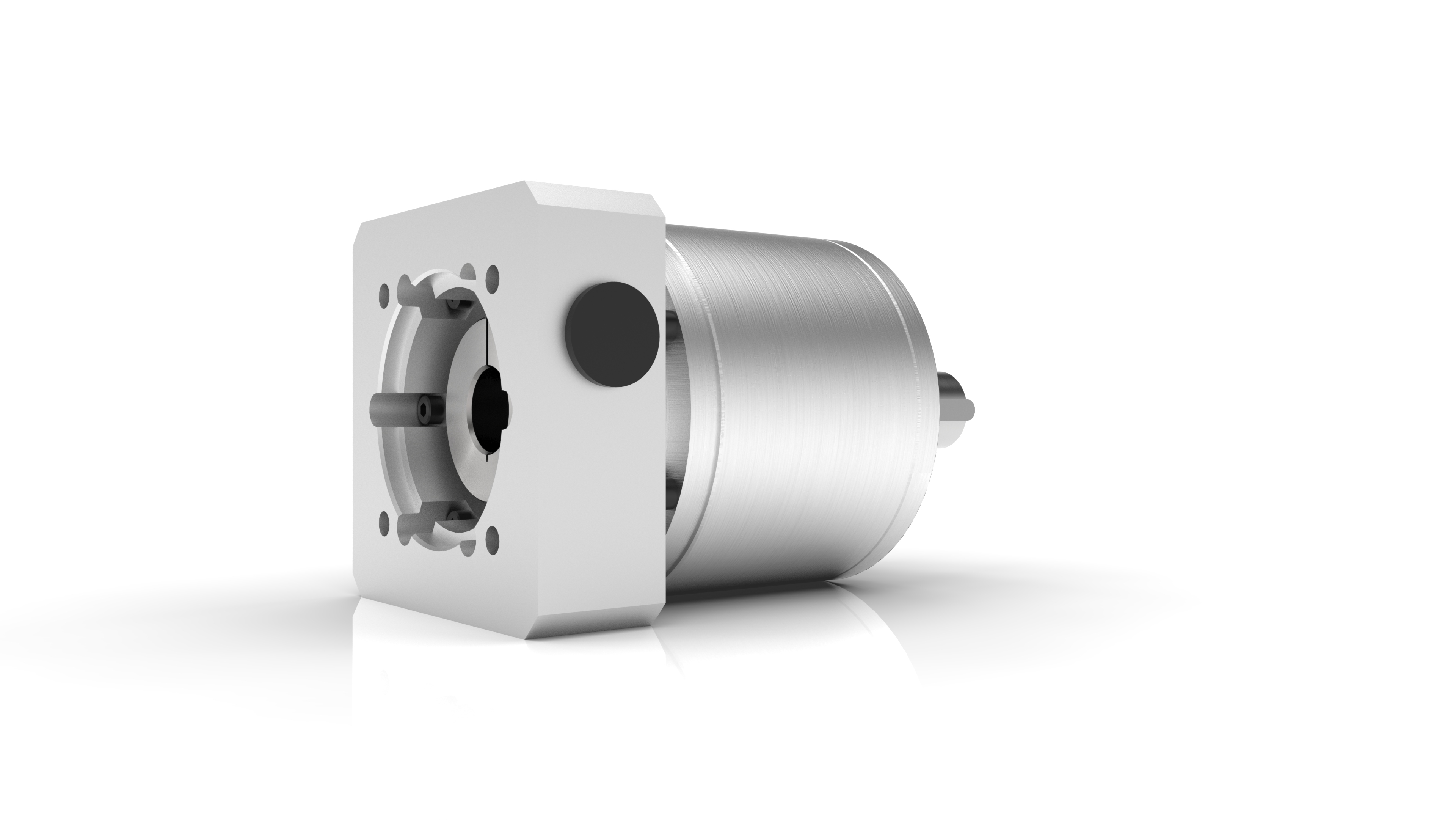

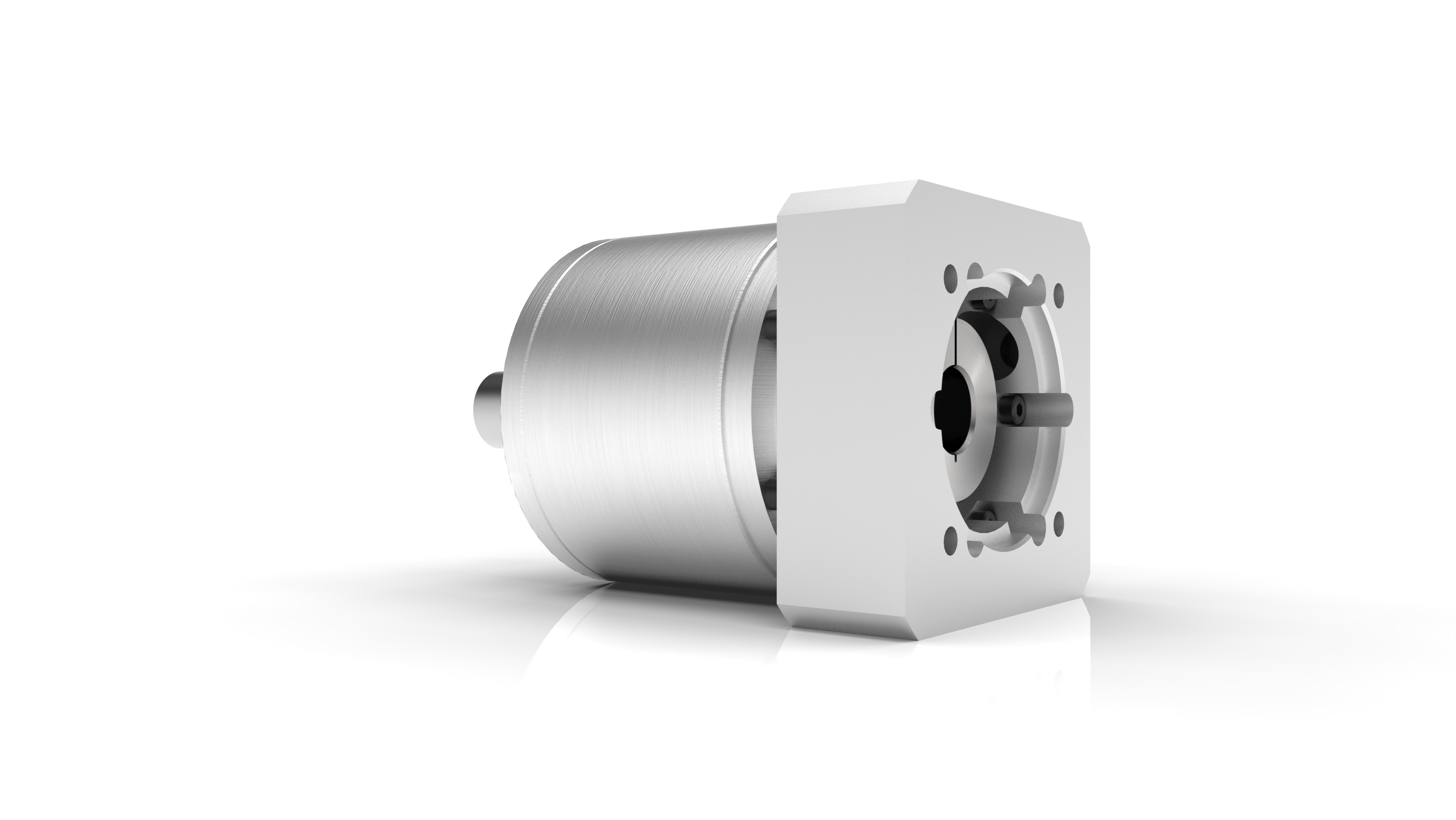

HPN-L · 8 product images· Contact LVH for CAD files
Product Overview
The HPN-L face-mount Harmonic Planetary value series gearbox provides low cost without compromising quality or performance. Features helical gears for high torque quiet operation and long life. Available in 5 frame sizes ratios 3:1 to 50:1 peak torque 9 to 752 Nm backlash less than 5 arc-min single stage less than 7 arc-min two stage. Quick Connect motor mounting fast delivery.
The HPN-L is a fully integrated rotary actuator combining servo motor, harmonic gear reducer, encoders, servo electronics, and compact mechanical packaging in a single assembly.
Servo Mount Gearhead Architecture
Harmonic Planetary and Harmonic Drive gearheads mount directly to standard servo motors using a flange or shaft input interface. The Quick Connect coupling system allows motor exchange without realignment. The cross roller output bearing provides direct load support.
Quick Connect Motor Mount
Rapid motor exchange without realignment tools, compatible with most servo motor flange standards.
Low Backlash
Less than 3 arc-min standard. Less than 1 arc-min available as an option on most series.
Cross Roller Output
Integrated cross roller bearing supports radial, axial, and moment loads without additional bearings.
Continuous Compensation
Continuous backlash compensation maintains low backlash throughout the gear life.
High Torsional Stiffness
High stiffness minimises compliance in the drive train for precise dynamic positioning.
Grease Lubricated for Life
No maintenance lubrication required over the operating life of the gearhead.
Typical Applications
The HPN-L suits servo motor driven robot joints, precision index tables, semiconductor wafer stages, laser beam steering, AGV and AMR propulsion drives, and any precision motion application requiring a servo mount gearhead with low backlash and high moment stiffness.
Key Specifications
Critical performance parameters at a glance
Technical Specifications
Overview
Size 11 Performance
Size 40 Performance
Product Attributes
Industrial Applications
These servo-mount gearheads are used where motor compatibility, compact packaging, and precision motion transmission are needed in a complete gearbox format.
Servo Axis Reduction
Pairs with servo motors in factory automation, robotics, and machinery where reduced speed and increased output torque are required.
Packaging & Converting
Supports motion axes in packaging, labelling, and converting systems where compact drivetrains and stable positioning are essential.
Robot Peripheral Axes
Used on auxiliary axes, end-of-arm devices, and support mechanisms that need precise servo-driven output motion.
Index Tables & Feed Systems
Works well in indexing mechanisms, feeders, and transfer systems where repeatable angular motion is important.
OEM Motion Modules
Simplifies motion subsystem design for OEMs needing a packaged reducer with predictable motor-mount integration.
Precision Equipment
Supports analytical, optical, and specialty machinery requiring compact servo-ready reduction stages.
