RSF-Mini Brushless Servo Actuator
Compact zero backlash brushless servo actuators ideal for small robot joints and semiconductor manufacturing with exceptional positional accuracy and high resolution
1 / 2 · Click thumbnail to view

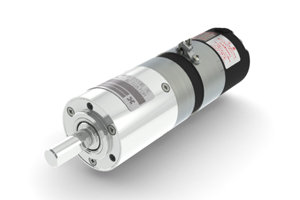

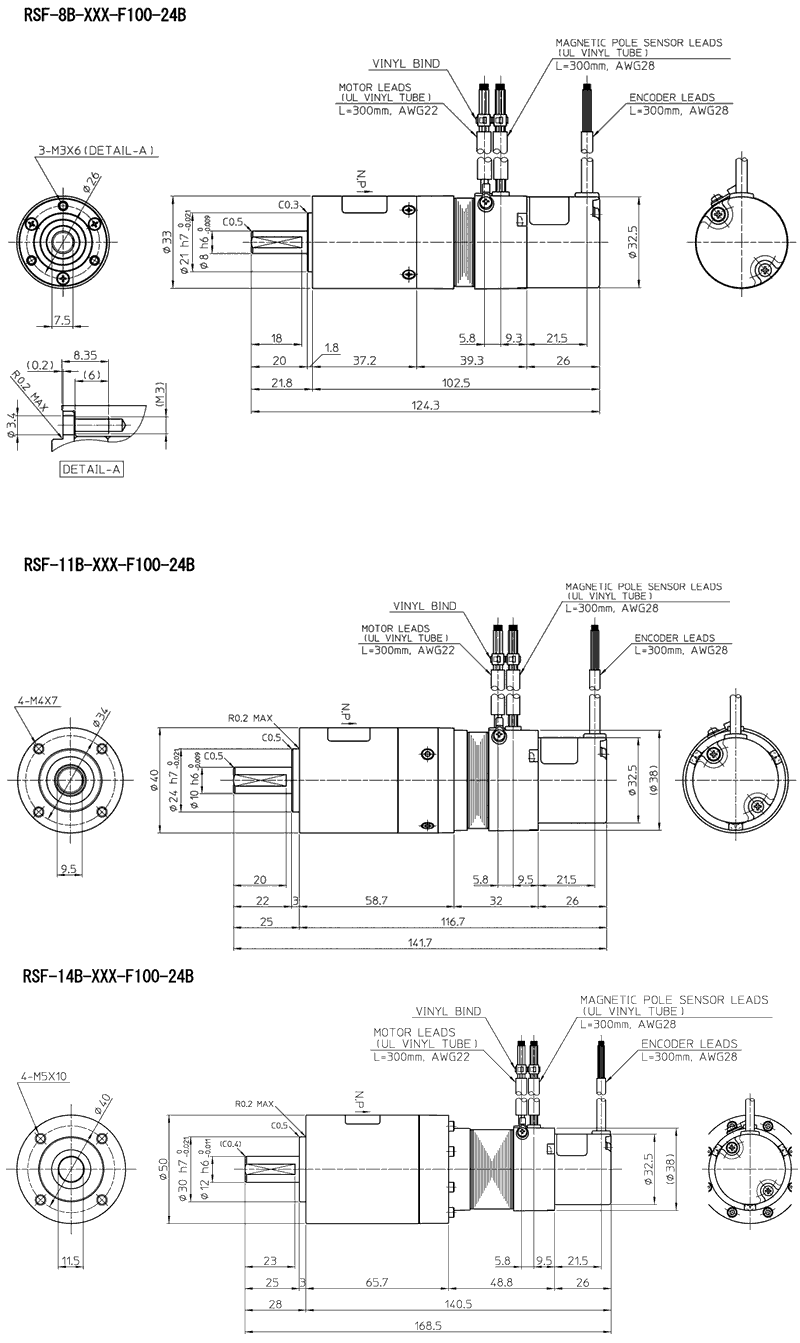

RSF-Mini · 2 product images· Contact LVH for CAD files
Product Overview
The RSF-Mini series uses zero backlash Harmonic Drive precision gears with AC brushless servomotor and incremental encoder. Available in sizes 8B 11B and 14B with gear ratios 30 50 and 100. Maximum torque 1.8 to 28 Nm. Mass 0.3 to 0.8 kg. Ideal for small robot joints and semiconductor LCD manufacturing equipment.
The RSF-Mini is a fully integrated rotary actuator combining servo motor, harmonic gear reducer, encoders, servo electronics, and compact mechanical packaging in a single assembly.
Rotary Actuator Architecture
Harmonic Drive rotary actuators integrate a precision strain wave gear with a brushless servo motor in a compact assembly. The hollow shaft design allows cables, pneumatic lines, or laser beams to pass directly through the axis of rotation.
Hollow Shaft Design
Central through-bore enables cable routing through the axis of rotation in robot joint designs.
Zero Backlash Gear
Harmonic Drive strain wave gear provides zero backlash for precise bidirectional positioning.
Brushless Servo Motor
Integrated brushless motor optimised for high cycle duty in automation applications.
High Accuracy
Positioning accuracy better than 1 arc-min with high repeatability across the operating range.
High Torque Density
Compact housing delivers high peak torque relative to size and mass.
Direct Load Attachment
Output flange directly accepts loads without additional coupling or bearing hardware.
Typical Applications
The RSF-Mini suits robot joint axes, index tables, semiconductor handling, laser beam steering, and precision positioning applications requiring compact hollow shaft actuation with zero backlash.
Key Specifications
Critical performance parameters at a glance
Technical Specifications
Overview
RSF-8B Performance
RSF-11B Performance
RSF-14B Performance
Product Attributes
Industrial Applications
These rotary actuators are used in compact motion systems where motor, reducer, and actuator packaging need to be tightly integrated for reliable deployment.
Robot Axis Actuation
Used in robot joints and compact rotary axes where packaged actuation simplifies mechanical and electrical integration.
Automation Modules
Fits automated handling, transfer, and tooling systems requiring a self-contained rotary motion solution.
End-of-Arm Systems
Supports wrist, tool rotation, and other compact axes in end-of-arm and auxiliary robotic mechanisms.
Precision Equipment
Useful in inspection, alignment, and specialist machinery where packaged rotary performance helps reduce integration effort.
OEM Motion Platforms
Helps OEMs build cleaner motion platforms by reducing the number of separate drive-train components.
Mobile & Service Robotics
Supports compact rotary motion subsystems in robots that need efficient packaging and robust mechanical integration.
Factory Modification & Custom Sourcing
This product supports custom configurations and equivalent sourcing
